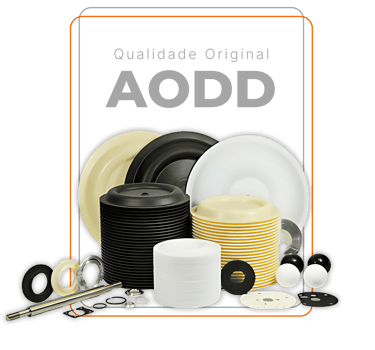

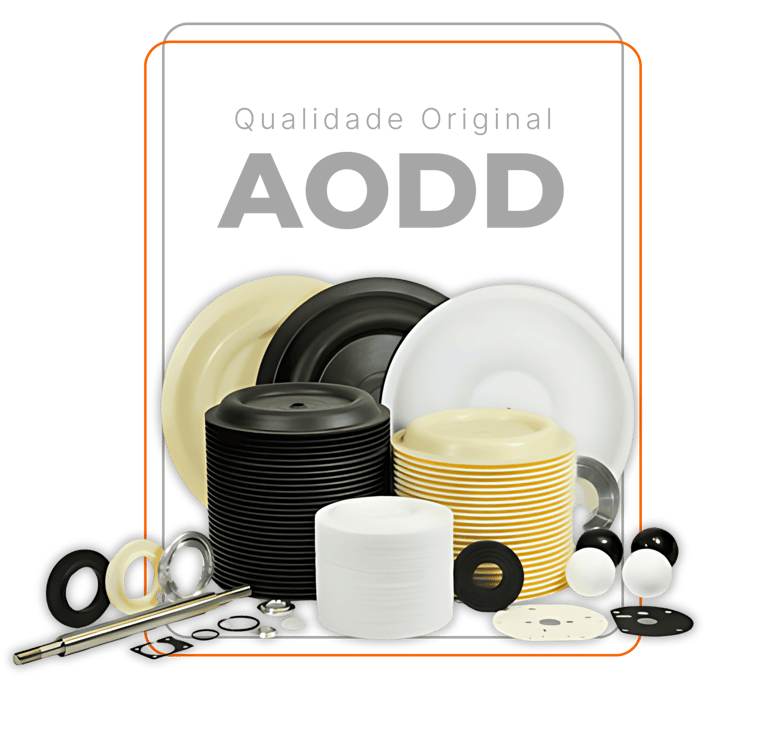

peças de reparo para bombas Wilden
peças de reparo para bombas Wilden

Peças de reparo para bombas WILDEN.

Fabricadas utilizando tecnologia de ponta e seguindo as mais rigorosas normas internacionais de qualidade, as peças de reparo AODD, foram desenvolvidas visando máximo vida útil e confiabilidade.

Na AODD você conta também com garantia contra defeitos de fabricação e uma equipe de especialistas qualificados e prontos para ajudar, orientar na identificação e esclarecer quaisquer dúvidas sobre peças de reparo e manutenção.

Solicite um orçamento

Desenvolvidas e certificadas com qualidade garantida AODD Bombas

Mais de 500 empresas confiam na AODD.

Procurando alternativas para bombas Wilden?

Conheça também nossa linha de bombas 100% compatíveis e dimensionalmente intercambiáveis com bombas WILDEN®

Consulte nossos preços

WILDEN ® é uma marca registrada do PSG (DOVER). A AODD Bombas não é afiliada a nenhuma dessas empresas. Os produtos AODD não são autorizados ou fabricados por essas empresas. A AODD Bombas oferece bombas e peças equivalentes, de alta qualidade, contando também com garantia, porém não originais da marca listada.

Procurando alternativas para bombas Wilden?

Conheça também nossa linha de bombas 100% compatíveis e dimensionalmente intercambiáveis com bombas WILDEN®

Consulte nossos preços

WILDEN ® é uma marca registrada do PSG (DOVER). A AODD Bombas não é afiliada a nenhuma dessas empresas. Os produtos AODD não são autorizados ou fabricados por essas empresas. A AODD Bombas oferece bombas e peças equivalentes, de alta qualidade, contando também com garantia, porém não originais da marca listada.

Mais confiabilidade.

Pelo
melhor preço.

Mais confiabilidade.

Pelo
melhor preço.

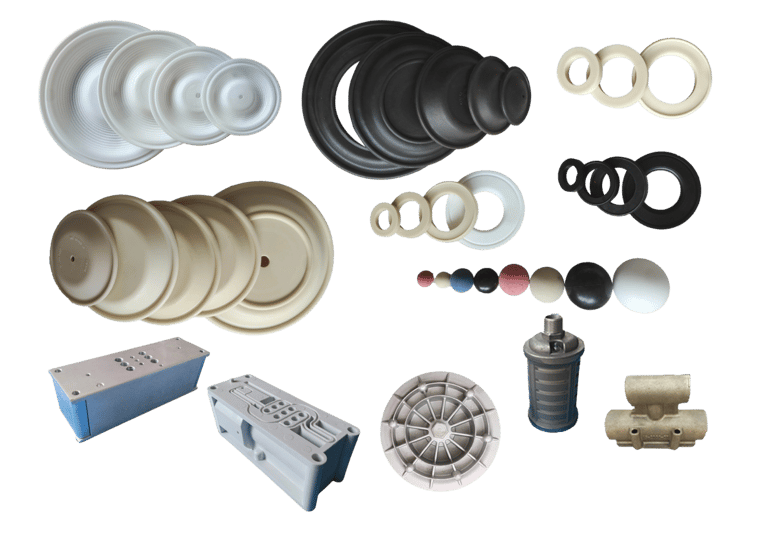

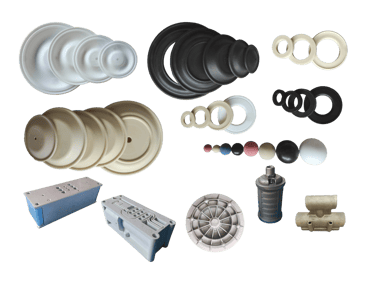

PEÇAS DE REPARO PARA BOMBAS WILDEN

  • WILDEN Turbo

  • WILDEN Proflo (Pro-flo)

  • WILDEN Proflo X (Pro-flo X)

  • WILDEN Proflo Shift (Pro-flo Shift)

  • WILDEN Saniflo FDA

*A menção aos modelos e tamanhos WILDEN ® são apenas para fins de identificação. WILDEN ® é uma marca registrada do PSG (DOVER). A AODD Bombas não é afiliada a nenhuma dessas empresas. Os produtos AODD não são autorizados ou fabricados por essas empresas. A AODD Bombas oferece bombas e peças equivalentes, de alta qualidade, contando também com garantia, porém não originais da marca listada.

Tamanhos | Bombas Wilden:
Modelos | Series Wilden:
Solicite um orçamento

  • Wilden P025 / PS25: 1/4"

  • Wilden P1 / P100 / PS1 / PX1: 1/2"

  • Wilden P2 / P200 / PS220 / PX2 / PX220: 1"

  • Wilden T4 / P4 / P400 / PS400 / PX4 / PX400: 1-1/2"

  • Wilden T8 / P8 / P800 / PS800 / PX8 / PX800: 2"

  • Wilden T15 / P15 / P1500 / PS1500: 3"

Construção | Tipos:

Construção do corpo:

  • Bombas plásticas de Polipropileno (PP)

  • Bombas metálicas de Alumínio

  • Bombas metálicas de Aço Inox

  • Bombas metálicas de ferro fundido

  • Bombas plásticas de PVDF

Materiais | Diafragmas e vedações:

  • Diafragmas PTFE (Teflon)

  • Diafragmas Santoprene (Wilflex)

  • Diafragmas Neoprene

  • Diafragmas Buna-N

  • Esferas, Assentos e anéis de vedação em diversos materiais

Tipo de fechamento:

  • Abraçadeiras

  • Parafusos

Kits de reparo para bombas Wilden:

  • Kit de reparo parte molhada (peças de desgaste em contato com o fluido bombeado)

  • Kit de reparo da válvula de ar

Lista de códigos de peças Wilden | para referência:

00-1010-52 DIAPHRAGM, PRIMARY, BUNA

00-1010-54 DIAPHRAGM, PRIMARY, EPDM

00-1010-58 DIAPHRAGM, PRIMARY, WILFLEX

00-1030-55 DIAPHRAGM, PRIMARY, INTEGRAL

00-1044-55 DIAPHRAGM, PTFE

00-1044-58 DIAPHRAGM, SANTOPRENE

00-1070-51 O-RING, (2.72 X.250)NEOPRENE

00-1070-54 O-RING, (2.72 X.250) EPDM

00-1070-58 O-RING, (2.72 X.250)WILFLEX

00-1074-56 SEAL, KANT, DIAPHRAGM, VELOCITY

00-1080-03 BALL, VALVE, SS

00-1080-55 BALL, VALVE, TEFLON

00-1080-58 BALL, VALVE, WILFLEX

00-1120-01 SEAT, VALVE, ALUMINUM

00-1120-03 SEAT, VALVE, SS

00-1130-20 SEAT, VALVE, POLY

00-1130-21 SEAT, VALVE, KYNAR

00-1200-52 O-RING, (.549 X.103)BUNA

00-1200-55 O-RING, (.549 X .103) PTFE

00-1200-58 O-RING, (.549 X.103)WILFLEX

00-1206-60 O-RING (.549 X .103) TFE.VITON

00-1220-52 O-RING, (.737 X.103)BUNA

00-1220-58 O-RING, (.737 X.103)WILFLEX

00-1220-60 O-RING, (.737 X.103)TFE/VITON

00-1260-52 O-RING, (.924 X.103)BUNA

00-1260-54 O-RING, (.924 X.103)NORDEL

00-1260-58 O-RING, (.924 X.103)WILFLEX

00-1300-52 O-RING, (.484 X.139)BUNA

00-1300-58 O-RING, (.484 X.139)WILFLEX

00-1300-60 O-RING, (.490 X.140)TFE/VITON

00-1370-55 O-RING, (.984 X.139)TEFLON

00-2000-01-150 A .025 SOLENOID VALVE BDY ASSY

00-2000-13-700 AIR VALVE ASSY, PRO-FLO

00-2000-20-481 AIR VALVE, PRO-FLO, THD ENDCAP

00-2000-20-700 AIR VALVE ASSY, PRO-FLO

00-2000-99-150 ASSY,SOLENOID,24V DC

00-2000-99-151 ASSY,SOLENOID,24V AC/12V DC

00-2000-99-761 ASSY, AV, XA.025, 24V DC, ATEX

00-2110-99-150 COIL, 24V DC

00-2110-99-151 COIL, 24V AC/12V DC

00-2110-99-155 COIL, 110V AC

00-2110-99-761 COIL, 24V DC, ATEX APPROVED

00-2112-99-153 COIL, 24V AC/12V DC, X-PROOF

00-2112-99-154 COIL, 24V DC, X-PROOF

00-2112-99-156 COIL, 110V AC, X-PROOF

00-2120-99 OPERATOR, SOLENOID, NEMA 4

00-2122-99 OPERATOR, SOLENOID, P025 NEMA4

00-2130-99 CONNECTOR, SOLENOID COIL

00-2150-20 SOL ADAPTER BLOCK, A.025, POLY

00-2155-20 SOL ADAPTER BLOCK, P025, POLY

00-2160-20 SOL SPACER PLATE, P.025, POLY

00-2170-20 FITTING, AIR BLOCK

00-2285-99 ASSY, PILOT PLUG, A025P

00-2286-52 O-RING (.364 X .07) PILOT PLUG

00-2300-13-700 END CAP, P.025

00-2300-20-700 END CAP, P.025

00-2390-52-700 O-RING, (.676 X.070)BUNA,PRO-F

00-2600-52 GASKET, AIR VALVE, T.025

00-2600-52-700 GASKET, AIR VALVE, P.025

00-2644-09 RETAINING RING, 1-5/8" (ZINC PLATED STEEL)

00-2650-03 RETAINING RING

00-2650-03-700 RETAINING RING, PILOT SPOOL

00-2870-52 O-RING, (.612 X.103)BUNA

00-3150-13-700 CENTER SECTION, P.025

00-3150-20 CENTER SECTION, A.025

00-3150-20-700 CENTER SECTION, P.025

00-3155-20 CENTER SECTION, P25/P38(MACH)

00-3180-20 MUFFLER PLATE, T.025

00-3200-52 O-RING, (.362 X.103)BUNA

00-3240-26-700 FILTER, MUFFLER, PRO-FLO

00-3244-26 ELEMENT MUFFLER (UHMW PE)

00-3500-52 GASKET, MUFFLER PLATE, T.025

00-3510-99 MUFFLER, 1/4"

00-3700-01 PISTON, INNER, (NON-PTFE)

00-3700-01-150 PISTON, INNER, (NON-PTFE) SOLE

00-3700-13-700 PISTON, INNER,(NON-PTFE),P.025

00-3700-20-700 PISTON, INNER, COMBO, P.025

00-3740-20 PISTON, INNER

00-3750-01-150 PISTON, INNER, (PTFE)

00-3800-03 SHAFT, STRAIGHT, SS, A.025

00-3800-99-700 ASSY, P.025 SHAFT

00-3850-99-700 ASSY, PILOT SPOOL

00-4570-03 PISTON, OUTER, (COMBO)

00-4570-08 PISTON, OUTER, (COMBO)

00-4570-20 PISTON, OUTER, (COMBO)

00-4570-21 PISTON, OUTER, (COMBO)

00-4640-20 PISTON, OUTER

00-4640-21 PISTON, OUTER

00-5000-01 CHAMBER, LIQUID,

00-5000-03 CHAMBER, LIQUID,

00-5001-20 CHAMBER, LIQUID

00-5001-21 CHAMBER, LIQUID

00-5005-20 CHAMBER, LIQUID, P25 ADV

00-5005-21 CHAMBER, LIQUID, P25 ADV

00-5014-20 CHAMBER, LIQUID

00-5035-20 MANIFOLD, DISCH, P25 ADV

00-5035-21 MANIFOLD, DISCH, P25 ADV

00-5036-20 MANIFOLD, DISCHARGE, P25, BSP

00-5036-21 MANIFOLD, DISCHARGE, P25, BSP

00-5050-01 MANIFOLD, COMBO, NPT

00-5050-03 MANIFOLD, COMBO, NPT

00-5051-01 MANIFOLD, COMBO, BSP

00-5051-03 MANIFOLD, COMBO, BSP

00-5054-01 MANIFOLD, COMBO, SPLIT, NPT

00-5095-20 MANIFOLD, INLET, P25 ADV

00-5095-21 MANIFOLD, INLET, P25 ADV

00-5096-20 MANIFOLD, INLET, P25, BSP

00-5096-21-673 MANF,INL ADV BSPT CTR VER PORT

00-5160-20 T-SECTION, (NPT)

00-5160-21 T-SECTION, (NPT)

00-5164-20 MANIFOLD, FOUR PORT

00-5164-21 MANIFOLD, FOUR PORT

00-5411-20 RETAINER, TOP

00-5411-21 RETAINER, TOP

00-5420-20 RETAINER, BOTTOM

00-5420-21 RETAINER, BOTTOM

00-5440-20 SLEEVE, RETAINER, P25

00-5440-21 SLEEVE, RETAINER, P25

00-6000-03 SCREW, SHC, 10-24 X 3 1/32

00-6000-03-700 SCREW, SHC, 10-24 X 1 3/4

00-6000-05-700 SCREW, SHC, 10-24 X 1 3/4

00-6114-03 SCREW, #10-14 x 1-1/4" HWH, 18-8 SS, TRI-LOBE

00-6124-03 SCREW, #10 SLOTTED HEX, WASHER, HEAD TAPPING TYPE A, VELOCITY

00-6350-03 SCREW, 1/4" X 1.25 HWHT

00-6350-05 SCREW, 1/4" X 1.25 HWHT,PFA

00-6505-03 NUT, SQUARE, 1/4-20

00-6505-05 NUT, SQUARE, 1/4-20, PFA

00-6740-03-514 WASHER, FLAT(.203 X.438 X.032)

00-6770-03-514 WASHER, LOCK(.210 X.334 X.047)

00-6800-08 WASHER, DISC SPRNG(.264 X.374)

00-6844-03 WASHER, INNER PISTON, .255X.468X.063 (NAS 620 C416)

00-7010-03 PIPE PLUG, MANIFOLD,1/4"NPT

00-7010-08 PIPE PLUG, MANIFOLD,1/4"NPT

00-7011-03 PIPE PLUG, MANIFOLD,1/4"BSP

00-7011-08 PIPE PLUG, MANIFOLD,1/4"BSP

00-7014-20 PLUG, NPT, 1/4"

00-7014-21 PLUG, NPT, 1/4"

00-7300-03 CLAMP BAND, LARGE, NESTED

00-9030-12 BOX

00-9042-12 BOX, P25-P38 ADV

00-9150-12 INSERT, COMBO

01-1010-50 DIAPHRAGM, PRIMARY, POLYURETHA

01-1010-52 DIAPHRAGM, PRIMARY, BUNA

01-1010-53 DIAPHRAGM, PRIMARY, VITON

01-1010-54 DIAPHRAGM, PRIMARY, EPDM

01-1010-55 DIAPHRAGM, PRIMARY, PTFE

01-1010-55E DIAPHRAGM, PRIMARY, PTFE PKG 2

01-1010-56 DIAPHRAGM, PRIMARY, SANIFLEX

01-1010-56E DIAPHRAGM, PRIMARY, FSS PKG 2

01-1010-58 DIAPHRAGM, PRIMARY, WILFLEX

01-1010-86 DIAPHRAGM, PRIMARY, ESD BUNA

01-1030-55 DIAPHRAGM, PRIMARY, INTEGRAL

01-1030-55E DIAPHRAGM, PRIMARY, TNL PKG 2

01-1044-55 DIAPHRAGM, PTFE

01-1044-58 DIAPHRAGM, SANTOPRENE

01-1060-51 DIAPHRAGM, BACK-UP, NEOPRENE

01-1060-53 DIAPHRAGM, BACK-UP, VITON

01-1060-54 DIAPHRAGM, BACK-UP, NORDEL

01-1060-54E DIAPHRAGM, BACK-UP, TEU, PKG 2

01-1060-56 DIAPHRAGM, BACK-UP, SANIFLEX

01-1060-56E DIAPHRAGM, BACK-UP, TSU, PKG 2

01-1060-61 DIAPHRAGM, BACK-UP, BUNA,HITMP

01-1060-86 DIAPHRAGM, BACK-UP, ESD BUNA

01-1074-56 SEAL, KANT, DIAPHRAGM, VELOCITY

01-1080-52 BALL, VALVE, BUNA

01-1080-53 BALL, VALVE, VITON

01-1080-54 BALL, VALVE, NORDEL

01-1080-55 BALL, VALVE, TEFLON

01-1080-55E BALL, VALVE, TF PKG 4

01-1080-56 BALL, VALVE, SANIFLEX

01-1080-56E BALL, VALVE, FS PKG 4

01-1080-58 BALL, VALVE, WILFLEX

01-1120-01 SEAT, VALVE, ALUMINUM

01-1120-03 SEAT, VALVE, SS

01-1120-03P SEAT, VALVE, SS PASSIVATED

01-1120-04 SEAT, VALVE, HASTELLOY

01-1120-21-500 SEAT, VALVE, PVDF, CHAMP

01-1120-53 SEAT, VALVE, VITON

01-1125-20 SEAT, VALVE, ADV

01-1125-21 SEAT, VALVE, ADV

01-1200-50 O-RING, (.924 X.103)POLYURETHA

01-1200-55 O-RING, (.924 X.103)TEFLON

01-1200-55E O-RING, (.924 X.103) TF PKG 4

01-1200-56 O-RING, (.924 X.103)SANIFLEX

01-1200-56E O-RING, (.924 X.103) FS PKG 4

01-1200-60-520 O-RING, (.859 X.139)TFE/VT,UP

01-1205-53 O-RING (.924 X .103) VT

01-1205-60 O-RING (.924 X .103) ENC/PTF

01-1300-50 O-RING, (.987 X.103)POLYURETHA

01-1300-52 O-RING, (.987 X.103)BUNA

01-1300-54 O-RING, (.987 X.103) EPDM

01-1300-55 O-RING, (.987 X.103)TEFLON

01-1300-55E O-RING, (.987 X.103) TF PKG 4

01-1300-56 O-RING, (.987 X.103)SANIFLEX

01-1300-56E O-RING, (.987 X.103) FS PKG 4

01-1300-60-500 O-RING, (.987 X.103)TFE/VT,CHP

01-1370-53 O-RING (1.484 X .139) VT

01-1370-58 O-RING (1.484 X .139) WF

01-1400-48-500 GASKET, MANIFOLD ELBOW, CHAMP

01-2000-01-150 ASSY, 01 SOLENOID VALVE BODY

01-2000-07 AIR VALVE, T1

01-2000-99-150 ASSY,SOLENOID,24V DC

01-2000-99-151 ASSY,SOLENOID,24V AC/12V DC

01-2000-99-155 ASSY,SOLENOID,110V AC

01-2010-13 ASSY, AIR VALVE, P1/P2

01-2010-16 ASSY, AIR VALVE, P1, COND ACET

01-2010-20 ASSY, AIR VALVE, P1/P2

01-2010-25 ASSY, AIR VALVE, P1, COND POLY

01-2011-13 ASSY, AIR VALVE, P1/P2, PCMI

01-2011-20 ASSY, AIR VALVE, P1/P2, PCMI

01-2030-01 AIR VALVE ASSY, PX1

01-2031-01 ASSY, AIR VALVE, PX1, PCMI

01-2151-32 SOL ADAPTER BLK, A1, VERT PORT

01-2155-20 SOL ADAPTER BLOCK, P1/P2, POLY

01-2160-20 SOL SPACER PLATE, P1/P2, POLY

01-2285-99 ASSY, PILOT PLUG, A1P

01-2300-23 END CAP W/GUIDE, T1

01-2330-23 END CAP W/O GUIDE, T1

01-2332-13 END CAP, P1/P2

01-2332-20 END CAP, P1/P2

01-2333-13 END CAP, P1/P2, PCM I

01-2333-20 END CAP, P1/P2, PCM I

01-2333-20-481 END CAP, W/ 1/4" NPT, P1/P2

01-2335-06 END CAP, PX1/PX2, NICKEL PLTD

01-2340-01 END CAP, PX1/PX2

01-2343-01 END CAP, PX1/PX2, PCM I

01-2390-52 O-RING, (.674 X.103)BUNA

01-2395-52 O-RING, (.103 X1.362)BUNA,PRO-

01-2600-52 GASKET, AIR VALVE, T1

01-2615-52 GASKET, AIR VALVE, P1/P2

01-2620-52 GASKET, AIR VALVE, PX1

01-2620-56 GASKET, AIR VALVE, PX1

01-2621-52 GASKET, AIR VALVE, PX1, SUBM

01-2621-56 GASKET, AIR VALVE, PX1, SUBM

01-2644-09 RETAINING RING, 1-9/16"

01-2650-03 RETAINING RING, AIR VALVE

01-3139-01 ASSY, PS1 CENTER SECTION

01-3140-13 CENTER SECTION, P1

01-3140-20 CENTER SECTION, P1

01-3140-25 CENTER SECTION, P1, COND POLY

01-3141-20 CENTER SECTION, P100 ADV

01-3147-01 ASSY, PX1 CENTER SECTION

01-3152-20 CENTER SECTION, A1

01-3152-23 CENTER SECTION, A1

01-3153-20 CENTER SECTION, T1,W/GLYD-RIN

01-3153-23 CENTER SECTION, T1,W/GLYD-RIN

01-3180-20 MUFFLER PLATE, T1

01-3180-23 MUFFLER PLATE, T1

01-3181-13 MUFFLER PLATE, P1/P2

01-3181-20 MUFFLER PLATE, P1/P2

01-3181-25 MUFFLER PLATE, P1, COND POLY

01-3184-20 FRAME, MUFFLER

01-3185-01 MUFFLER PLATE, PX1

01-3200-52 O-RING, (.609 X.139)BUNA

01-3210-55-200 SEAL, SLIPPER, (.620 X .030)

01-3214-50 O-RING, SHAFT, -208

01-3220-55 GLYD-RING, (.618 X.136) II, 01

01-3244-26 ELEMENT, MUFFLER

01-3500-52 GASKET, MUFFLER PLATE, T1

01-3502-52 GASKET, MUFFLER PLATE, PX1

01-3502-56 GASKET, MUFFLER PLATE, PX1

01-3505-52 GASKET, MUFFLER PLATE

01-3510-99 MUFFLER, 3/8"

01-3512-99 MUFFLER, METAL, 3/8"

01-3710-01 PISTON, INNER, (COMBO)

01-3710-01-150 PISTON, INNER,(COMBO) SOLENOID

01-3711-08 PISTON, INNER, P1 (COMBO)

01-3740-20 INNER PISTON

01-3800-03-07 SHAFT, STRAIGHT, COMBO, SS

01-3810-03 SHAFT. P1, COMBO, SS

01-3849-03 SHAFT

01-3880-99 ASSY, PILOT SLEEVE, P1

01-4570-01 PISTON, OUTER, (COMBO)

01-4570-03 PISTON, OUTER, (COMBO)

01-4570-03P PISTON, OUTER (COMBO) PASSIVAT

01-4570-20-500 PISTON, OUTER, (COMBO)

01-4570-21-500 PISTON, OUTER, (COMBO)

01-4640-20 OUTER PISTON

01-5000-01 CHAMBER, LIQUID

01-5000-03 CHAMBER, LIQUID

01-5000-03P CHAMBER, LIQUID, PASSIVATED

01-5000-20 CHAMBER, LIQUID

01-5000-21 CHAMBER, LIQUID

01-5005-20 CHAMBER, LIQUID, ADV

01-5005-21 CHAMBER, LIQUID, ADV

01-5010-21-500 BALL RING

01-5035-20 MANIFOLD, DISCH ADV NPT

01-5035-20-667 MANIFOLD,DISCH ADV,NPT CTR/VER

01-5035-20-677 MANIFOLD, DIS ADV NPT CTR PORT

01-5035-21 MANIFOLD, DISCH ADV NPT

01-5035-21-667 MANIFOLD,DISCH ADV,NPT CTR/VER

01-5035-21-677 MANIFOLD, DIS ADV NPT CTR PORT

01-5036-20 MANIFOLD, DISCH ADV BSPT

01-5036-20-678 MANIFOLD,DIS ADV BSP CTR PORT

01-5036-21 MANIFOLD, DISCH ADV BSPT

01-5094-20 MANIFOLD, INLET, ADV, DP

01-5094-21 MANIFOLD, INLET, ADV, DP

01-5095-20 MANIFOLD, INLET ADV NPT

01-5095-20-677 MANIFOLD, INL ADV NPT CTR PORT

01-5095-21 MANIFOLD, INLET ADV NPT

01-5095-21-667 MANIFOLD,INLET ADV,NPT CTR/VER

01-5095-21-677 MANIFOLD, INL ADV NPT CTR PORT

01-5096-20 MANIFOLD, INLET ADV BSP

01-5096-21 MANIFOLD, INLET ADV BSPT

01-5097-20 MANIFOLD, INLET ADV NPT, OEM

01-5097-21-677 MANIFOLD, INLET ADV NPT OEM CP

01-5098-20 MANIFOLD, INLET ADV BSPT, OEM

01-5160-01 T-SECTION, (NPT)

01-5160-01-14 T-SECTION, (BSP)

01-5160-03 T-SECTION, (NPT)

01-5160-03-14 T-SECTION, (BSP)

01-5160-03-70P T-SECTION, SANITARY, PASSIVATE

01-5160-20 T-SECTION, (NPT)

01-5160-21 T-SECTION, (NPT)

01-5164-20 MANIFOLD, FOUR PORT

01-5220-01 ELBOW, INLET MANIFOLD

01-5220-03 ELBOW, INLET MANIFOLD

01-5220-20 ELBOW, INLET MANIFOLD

01-5220-21 ELBOW, INLET MANIFOLD

01-5230-01 ELBOW, DISCHARGE MANIFOLD

01-5230-03 ELBOW, DISCHARGE MANIFOLD

01-5230-03P ELBOW, DISCHARGE MANIFOLD PASS

01-5230-20 ELBOW, DISCHARGE MANIFOLD

01-5230-21 ELBOW, DISCHARGE MANIFOLD

01-5355-20 CAGE, BALL, COMBO, ADV

01-5355-21 CAGE, BALL COMBO ADV

01-5540-20 BASE, REMOVABLE

01-6000-03 SCREW, SHC, 1/4-20 X 4 1/2

01-6000-05 SCREW, SHC, 1/4-20 X 4 1/2

01-6001-03 SCREW, SHC, 1/4-20 X 3

01-6001-05 SCREW, SHC, 1/4-20 X 3

01-6070-03 BOLT, RHSN, 1/4-20 X 2 1/4

01-6070-05 BOLT, RHSN, 1/4-20 X 2

01-6080-03 BOLT, RHSN, 1/4-20 X 7 1/2

01-6100-03 SCREW, HHC, 10-24 X 1 1/2

01-6100-05 SCREW, HHC, 10-24 X 1 1/2

01-6101-03 SCREW, HHC, 10-24 X 1

01-6101-05 SCREW, HHC, 10-24 X 1

01-6114-03 SCREW, #12 X .875"

01-6150-03 STUD, 5/16-18 X 1 3/8

01-6154-03 STUD, SHAFT 5/16-18

01-6185-03 SCREW, FLANGED, HHC, 1/4-20 X 1-3/4

01-6191-05 SCREW, HHC, 5/16-18X 1 3/8 PFA

01-6342-03 SCREW, SET, PX1 AIR ADJUSTER

01-6400-03 NUT, HEX, 10-24

01-6400-05 NUT, HEX, 10-24

01-6544-03 T-NUT, 1/4-20

01-6730-03 WASHER, FLAT(.281 X.625 X.065)

01-6732-03 WASHER (.343 X .750 X .05)

01-6802-08 WASHER, DISC SPRNG(.331 X.512)

01-6950-13 BUSHING, REDUCER, 1/2" TO 1/4"

01-6950-20 BUSHING, REDUCER, 1/2" TO 1/4"

01-7010-20 PLUG, PIPE, 1/2" NPT MANIFOLD

01-7010-21 PLUG, PIPE, MANIFOLD

01-7100-03 CLAMP BAND, SMALL, NESTED

01-7300-03 CLAMP BAND, LARGE, NESTED

01-7300-03-70 CLAMP BAND, LG W/ WING NUT

01-8303-99 WIRE, 96" GROUNDING CSA

01-9030-12 BOX

01-9042-12 BOX, P1 PLAST BOLTED

01-9100-12 INSERT, BOTTOM

01-9106-12 INSERT, P1 PLAST BOLTED

02-1010-51 DIAPHRAGM, PRIMARY, NEOPRENE

02-1010-52 DIAPHRAGM, PRIMARY, BUNA

02-1010-53 DIAPHRAGM, PRIMARY, VITON

02-1010-54 DIAPHRAGM, PRIMARY, NORDEL

02-1010-55 DIAPHRAGM, PRIMARY, PTFE

02-1010-55E DIAPHRAGM, PRIMARY, PTFE PKG 2

02-1010-56 DIAPHRAGM, PRIMARY, SANIFLEX

02-1010-56E DIAPHRAGM, PRIMARY, FSS PKG 2

02-1010-57 DIAPHRAGM, PRIMARY,FDA WILFLEX

02-1010-58 DIAPHRAGM, PRIMARY, WILFLEX

02-1010-72-85 DIAPHRAGM, PRIMARY, SIPD

02-1010-72-85E DIAPHRAGM, PRIMARY, LEL PKG 2

02-1010-74 DIAPHRAGM, PRIMARY, FDA EPDM

02-1010-74E DIAPHRAGM, PRIMARY, FES PKG 2

02-1010-86 DIAPHRAGM, PRIMARY, ESD BUNA

02-1011-55 DIAPHRAGM, PRIMARY, H200 FFLOW

02-1011-57 DIAPHRAGM, PRIMARY, H200

02-1031-56 DIAPHRAGM, PRIMARY SIPD

02-1031-56E DIAPHRAGM, PRIMARY, FSL PKG 2

02-1031-57 DIAPHRAGM, PRIMARY, SIPD

02-1031-58 DIAPHRAGM, PRIMARY, IPD

02-1040-55 DIAPHRAGM, PRIMARY, FULL FLOW

02-1040-55E DIAPHRAGM, PRIMARY, FFLO PKG 2

02-1060-51 DIAPHRAGM, BACK-UP, NEOPRENE

02-1060-54 DIAPHRAGM, BACK-UP, NORDEL

02-1060-54E DIAPHRAGM, BACK-UP, TEU, PKG 2

02-1060-55-85 DIAPHRAGM, BACK UP, SANITARY

02-1060-55-85E DIAPHRAGM, BACK UP, LEL, PKG 2

02-1060-56 DIAPHRAGM, BACK-UP, SANIFLEX

02-1060-56E DIAPHRAGM, BACK-UP, TSU, PKG 2

02-1060-86 DIAPHRAGM, BACK-UP, ESD BUNA

02-1065-56 DIAPHRAGM, BU, FSS, FULL FLOW

02-1065-56E DIAPHRAGM, BU, FSS, FFLO PKG 2

02-1065-57 DIAPHRAGM, BU, FWS, FULL FLOW

02-1067-57 DIAPHRAGM, BU, H200, FULL FLOW

02-1080-03-385 BALL, VALVE, SS, EHEDG (1.5")

02-1080-51 BALL, VALVE, NEOPRENE

02-1080-52 BALL, VALVE, BUNA

02-1080-53 BALL, VALVE, VITON

02-1080-54 BALL, VALVE, NORDEL

02-1080-55 BALL, VALVE, TEFLON

02-1080-55E BALL, VALVE, TF PKG 4

02-1080-56 BALL, VALVE, SANIFLEX

02-1080-56E BALL, VALVE, FS PKG 4

02-1080-58 BALL, VALVE, WILFLEX

02-1080-68-85 BALL, VALVE, FDA VITON, 3A

02-1085-50 BALL, VALVE, POLY, ADV

02-1085-51 BALL, VALVE, NEO, ADV

02-1085-52 BALL, VALVE, BUNA, ADV

02-1085-53 BALL, VALVE, VITON, ADV

02-1085-54 BALL, VALVE, EPDM, ADV

02-1085-55 BALL, VALVE, PTFE

02-1085-55E BALL, VALVE, TF PKG 4

02-1085-56 BALL, VALVE, SANIFLEX

02-1085-56E BALL, VALVE, FS PKG 4

02-1085-58 BALL, VALVE, WILFLEX

02-1086-57 BALL, VALVE, FDA WIL-FLEX, 1"

02-1086-74 BALL, VALVE, FDA EPDM, 1" EHED

02-1086-74E BALL, VALVE, FE 1" EHEDG PKG 4

02-1120-01 SEAT, VALVE, ALUMINUM

02-1120-03 SEAT, VALVE, STAINLESS STEEL

02-1120-03E SEAT, VALVE, PASSIVATED

02-1120-03P SEAT, VALVE, SS, PASSIVATED

02-1120-04 SEAT, VALVE, HASTELLOY

02-1120-20-400 SEAT, VALVE, POLY, M2R

02-1120-21-400 SEAT, VALVE, PVDF, M2R

02-1124-20 SEAT, VALVE, ADV POLY, HI VAC

02-1125-01 SEAT, VALVE, P200, ALUM

02-1125-03 SEAT, VALVE, P200, SS

02-1125-08 SEAT, VALVE, P200, MILD STEEL

02-1125-20 SEAT, VALVE, BOLTED, POLY

02-1125-21 SEAT, VALVE, BOLTED, PVDF

02-1125-55 SEAT, VALVE, PTFE

02-1125-57 SEAT VALVE, BOLTED PLASTIC

02-1129-03 SEAT, VALVE, H200

02-1129-08 SEAT, VALVE, H200

02-1200-50-400 O-RING, (1.234 X.139)POLY,M2R

02-1200-50-500 O-RING, (1.421 X.139)POLY,CHP

02-1200-52 O-RING, (1.109 X.139)BUNA

02-1200-52-500 O-RING, (1.421 X.139)BUNA,CHP

02-1200-52-90 O-RING, (1.109 X.139)BUNA,UL

02-1200-54 O-RING, (1.109 X.139)NORDEL

02-1200-55 O-RING, (1.109 X.139)TEFLON

02-1200-55-500 O-RING, (1.421 X.139)TFE,CHP

02-1200-55E O-RING, (1.109X.139) TF PKG 4

02-1200-56 O-RING, (1.109 X.139)SANIFLEX

02-1200-56E O-RING, (1.109X.139) FS PKG 4

02-1200-58 O-RING, (1.109 X.139)WILFLEX

02-1200-58-400 O-RING, (1.233 X.148)WF,M2R

02-1200-58-500 O-RING, (1.421 X.139)WF,CHP

02-1200-60-400 O-RING, (1.233 X.165)TF/VT,M2R

02-1200-60-500 O-RING, (1.421 X.139)TF/VT,CHP

02-1205-50 O-RING (1.734 X .139), POLYURE

02-1205-51 O-RING (1.734 X .139), NEOPREN

02-1205-52 O-RING (1.734 X .139), BUNA

02-1205-53 O-RING (1.734 X .139), VITON

02-1205-54 O-RING (1.734 X .139), NORDEL

02-1205-55 O-RING (1.734 X .139) PTFE

02-1205-56 O-RING (1.734 X .139) HYTREL

02-1205-58 O-RING (1.734 X .139) WIL-FLEX

02-1220-50 O-RING, (1.859 X.139)POLYURETH

02-1220-58 O-RING, (1.859 X.139)WILFLEX

02-1220-60 O-RING, (1.859 X.139)TFE/VITON

02-1230-50 O-RING (1.484 X .139) POLYURE

02-1230-52 O-RING (1.484 X .139) BUNA

02-1230-58 O-RING, (1.550 X.140)WILFLEX

02-1230-60 O-RING, (1.550 X.140)TFE/VITON

02-1300-50-400 O-RING, (.990 X.177)POLY,M2R

02-1300-58-400 O-RING, (.990 X.148)WF,M2R

02-1300-60-400 O-RING, (.990 X.177)TFE/VT,M2R

02-1320-55-85 GASKET, T-SECTION

02-1320-55-85E GASKET, T-SECTION PKG 4

02-1320-68-85 GASKET, T-SECTION

02-1320-68-85E GASKET, T-SECTION PKG 4

02-1320-69-85E GASKET, T-SECTION, EHEDG PKG 4

02-1320-74-85 GASKET, T-SECTION 1" EHEDG

02-1320-74-85E GASKET, T-SECTION, EHEDG PKG 4

02-1370-58 O-RING,(2.734X.139) WILFLEX

02-1372-50 O-RING (2.359 X .139), POLYURE

02-1372-51 O-RING (2.359 X .139), NEOPREN

02-1372-53 O-RING (2.359 X .139), VITON

02-1372-54 O-RING (2.359 X .139), NORDEL

02-1372-56 O-RING (2.359 X .139), HYTREL

02-1372-58 O-RING (2.359 X .139),WIL-FLEX

02-1400-68-85 GASKET, MANIFOLD ELBOW, 3A

02-1400-68-85E GASKET, MANIFOLD ELBOW PKG 2

02-2000-01-150 ASSY, 02 SOLENOID VALVE BODY

02-2000-07 ASSY, T2 AIR VALVE

02-2000-99-150 ASSY,SOLENOID,24V DC

02-2000-99-151 ASSY,SOLENOID,24V AC/12V DC

02-2000-99-155 ASSY,SOLENOID,110V AC

02-2003-01 ASSY, AIR VALVE, H200

02-2030-01 AIR VALVE ASSY, PX2

02-2030-06 ASSY, AIR VALVE, PX2, NP

02-2031-01 ASSY, AIR VALVE, PX2, PCMI

02-2113-99-153 ASSY,SOLENOID,24V AC/12V DC,X-

02-2113-99-154 ASSY,SOLENOID,24V DC,X-PRF

02-2150-20 SOL ADAPTER BLOCK, A2, POLY

02-2285-99 ASSY, PILOT PLUG, A2P

02-2301-23 END CAP W/GUIDE, T2, REVISED

02-2306-23 W/GUIDE, H200 END CAP

02-2331-23 END CAP W/O GUIDE, T2, REVISED

02-2336-23 W/O GUIDE, H200 END CAP

02-2600-52 GASKET, AIR VALVE, T2

02-2603-52 ISOLATOR GASKET H200

02-2620-52 GASKET, AIR VALVE, PX2

02-2620-56 GASKET, AIR VALVE, PX2

02-2621-52 GASKET, AIR VALVE SUB, PX2

02-2621-56 GASKET, AIR VALVE SUB, PX2

02-2650-03 RETAINING RING, AIR VALVE, T2

02-3000-01 COVER, CENTER, SECTION, H200

02-3138-01 ASSY, PS220/230 CENTER SECTION

02-3142-13 CENTER SECTION, P200 HYBRID

02-3142-20 CENTER SECTION, P200 HYBRID

02-3142-25 CENTER SEC, P2 HYB, COND POLY

02-3145-13 CENTER SECTION, P2, ACET

02-3145-20 CENTER SECTION, P2, POLY

02-3148-01 ASSY, PX200 CENTER SECTION

02-3149-06 CENTER SECTION, PX2, NP SAN-HS

02-3150-01-225 CENTER SECTION, T2,TURBO,ALUM

02-3151-20-225 CENTER SECTION, T2,TURBO,POLY

02-3154-01 SECTION, CENTER, H200

02-3180-01 MUFFLER PLATE, T2, TURBO, ALUM

02-3180-20 MUFFLER PLATE, T2, TURBO, POLY

02-3185-01 MUFFLER PLATE, PX2

02-3185-06 MUFFLER, PLATE, PX2, NICKEL

02-3190-52 O-RING, (.734 X.139)BUNA

02-3200-52 O-RING, (.734 X.139)BUNA

02-3200-52-200 O-RING, (.799 X.103)BUNA,LF

02-3210-55-225 GLYD-RING, (.749 X.133) II, 02

02-3250-08 ELBOW, 3/4" FNPT X 90 DEGREE

02-3260-52 CENTER SECTION, GASKET, H200

02-3307-99 BUSHING ASSEMBLY, SHAFT, H200

02-3500-52-110 GASKET, MUFFLER PLATE,T2 METAL

02-3500-52-500 GASKET, MUFFLER PLATE, T2 PLAS

02-3502-52 GASKET, MUFFLER PLATE, PX2

02-3502-56 GASKET, MUFFLER PLATE, PX2

02-3510-99 MUFFLER, PLASTIC,1/2"

02-3512-99 MUFFLER, METAL, 1/2"

02-3692-02 CHAMBER, AIR, H200

02-3700-08 PISTON, INNER, T2, TURBO, RUBR

02-3701-01 PISTON, INNER, P2 (NON-PTFE)

02-3702-02 PISTON, INNER, H200

02-3720-01 PISTON, CYLINDER, H200

02-3730-03 BUSHING, CYLINDER PISTON, H200

02-3750-01 PISTON, INNER, T2, PTFE

02-3751-01 PISTON, INNER, P2 (PTFE)

02-3800-03-07 SHAFT, STRA, T2, NON-PTFE, SS

02-3810-03 SHAFT,STRAIGHT,P2,NON-PTFE,SS

02-3820-03-07 SHAFT, STRAIGHT, T2, PTFE, SS

02-3840-03 SHAFT, STRAIGHT, P2, PTFE, SS

02-3845-03 SHAFT, H200

02-3880-99 ASSY, PILOT SLEEVE, P2

02-4550-01 PISTON, OUTER, (NON-PTFE)

02-4550-02 PISTON, OUTER (NON-PTFE)

02-4550-03 PISTON, OUTER, (NON-PTFE)

02-4550-03P PISTON, OUTER (RUBBER) PASSIVA

02-4550-10-385P PISTON, OUTER (NON-PTFE) PASSI

02-4550-21-500 PISTON, OUTER, (NON-PTFE)

02-4565-02 PISTON, OUTER, H200

02-4600-02 PISTON, OUTER (PTFE)

02-4600-03 PISTON, OUTER, (PTFE)

02-4600-03P PISTON, OUTER (PTFE) PASSIVATE

02-4600-04 PISTON, OUTER, (PTFE)

02-4600-10-385P PISTON, OUTER(PTFE) PASSIVATE

02-4600-21-500 PISTON, OUTER, (PTFE)

02-4601-01 PISTON, OUTER

02-5000-01 CHAMBER, LIQUID

02-5000-03 CHAMBER, LIQUID

02-5000-03P CHAMBER, LIQUID PASSIVATED

02-5001-20-400 CHAMBER, LIQUID, M2R

02-5001-21-400 CHAMBER, LIQUID, M2R

02-5004-01 CHAMBER, LIQUID

02-5004-03 CHAMBER, LIQUID

02-5005-01 CHAMBER, LIQUID, HYBRID, ALUM

02-5005-03 CHAMBER, LIQUID, HYBRID S.S.

02-5005-04 CHAMBER, LIQUID, HAST, HYBRID

02-5005-20 CHAMBER, LIQUID, ADV

02-5005-21 CHAMBER, LIQUID, BLTD

02-5012-02 CHAMBER, LIQUID, H200

02-5012-03 CHAMBER, LIQUID, H200

02-5015-01 CHAMBER, LIQUID, P200

02-5015-02 CHAMBER, LIQUID, P200

02-5015-03 CHAMBER, LIQUID, P200

02-5020-01 MANIFOLD, DISCHARGE

02-5020-01-14 MANIFOLD, DISCHARGE, BSPT

02-5020-03 MANIFOLD, DISCHARGE

02-5020-03-14 MANIFOLD, DISCHARGE, BSPT

02-5020-04 MANIFOLD, DISCHARGE

02-5020-04-14 MANIFOLD, DISCHARGE, BSPT

02-5024-01 MANIFOLD, DISCHARGE, NPT

02-5024-03 MANIFOLD, DISCHARGE, NPT

02-5025-03-70P MANIFOLD, DISCHARGE, LONG NECK

02-5026-01 MANIFOLD, DISCHARGE, BSPT

02-5026-03 MANIFOLD, DISCHARGE, BSPT

02-5030-03 MANIFOLD, DISCHARGE, P200 ANSI

02-5030-20 MANIFOLD, DISCHARGE, ANSI

02-5030-21 MANIFOLD, DISCHARGE, ANSI

02-5031-03 MANIFOLD, DISCHARGE, P200, DIN

02-5031-20 MANIFOLD, DISCHARGE, BLTD, DIN

02-5032-03 MANIFOLD, DISCHARGE, H200, NPT

02-5033-02 MANIFOLD, DISCHARGE, BSP, H200

02-5035-01 MANIFOLD, DISCHARGE, P200, NPT

02-5035-01-677 MANIFOLD, DISCH, 1" NPT, CP

02-5035-01-697 MANIFOLD, DISCH, 3/4" NPT, CP

02-5035-02 MANIFOLD, DISCHARGE, P200, NPT

02-5035-03 MANIFOLD, DISCHARGE, P200, NPT

02-5035-03-677 MANIFOLD, DISCH, 1" NPT, CP

02-5035-03-697 MANIFOLD, DISCH, 3/4" NPT, CP

02-5036-01 MANIFOLD, DISCHARGE, P200 BSP

02-5036-01-678 MANIFOLD, DISCH, 1" BSPT, CP

02-5036-01-698 MANIFOLD, DISCH, 3/4" BSP, CP

02-5036-02 MANIFOLD, DISCHARGE, P200 BSP

02-5036-03 MANIFOLD, DISCHARGE, P200 BSP

02-5036-03-678 MANIFOLD, DISCH, 1" BSP, CP

02-5080-01 MANIFOLD, INLET

02-5080-01-14 MANIFOLD, INLET, BSPT

02-5080-03 MANIFOLD, INLET

02-5080-03-14 MANIFOLD, INLET, BSPT

02-5080-04 MANIFOLD, INLET

02-5084-01 MANIFOLD, INLET, NPT

02-5084-03 MANIFOLD, INLET, NPT

02-5085-03-70P MANIFOLD, INLET, LONG NECK

02-5086-01 MANIFOLD, INLET, BSPT

02-5086-03 MANIFOLD, INLET, BSPT

02-5088-03-70P MANIFOLD, INLET, LONG NECK

02-5090-03 MANIFOLD, INLET, P200 ANSI

02-5090-20 MANIFOLD, INLET, ANSI

02-5090-21 MANIFOLD, INLET, ANSI

02-5091-03 MANIFOLD, INLET, P200 DIN

02-5091-20 MANIFOLD, INLET, BLTD, DIN

02-5092-03 MANIFOLD, INLET, H200 NPT

02-5093-02 MANIFOLD, INLET, BSP, H200

02-5095-01 MANIFOLD, INLET, P200, NPT

02-5095-01-677 MANIFOLD, INLET, 1" NPT, CP

02-5095-02 MANIFOLD, INLET, P200, NPT

02-5095-03 MANIFOLD, INLET, P200, NPT

02-5095-03-677 MANIFOLD, INLET, 1" NPT, CP

02-5096-01 MANIFOLD, INLET, P200, BSP

02-5096-01-678 MANIFOLD, INLET, 1" BSPT, CP

02-5096-02 MANIFOLD, INLET, P200, BSP

02-5096-03 MANIFOLD, INLET, P200 BSPT

02-5096-03-678 MANIFOLD, INLET, 1" BSPT, CP

02-5160-10-385P T-SECTION, 1" EHEDG

02-5160-20-400 T-SECTION, M2R, (ANSI)

02-5160-20-404 T-SECTION, M2R, (DIN)

02-5160-21-400 T-SECTION, M2R, (ANSI)

02-5160-21-404 T-SECTION, M2R, (DIN)

02-5240-10-385P ELBOW, 1" EHEDG

02-5350-10-385P BALL CAGE, 1" EHEDG

02-5411-20-400 RETAINER, TOP, M2R

02-5411-21-400 RETAINER, TOP, M2R

02-5420-20-400 RETAINER, BOTTOM

02-5420-21-400 RETAINER, BOTTOM

02-6000-03 SCREW, SHC, 1/4-20 X 6

02-6000-08 SCREW, SHC, 1/4-20 X 6

02-6002-03 SCREW, SHC, 1/4-20 X 4.00

02-6050-03-500 BOLT, RHSN, 1/4-20 X 1 1/2

02-6080-03 BOLT, RHSN, 3/8-16 X 8 1/2

02-6080-08 BOLT, RHSN, 3/8-16 X 8 1/2

02-6150-03-85 STUD, 3/8-16 X 1 1/4

02-6150-08 STUD, 3/8-16 X 1 1/4

02-6181-03 SCREW, HHC, 5/16-18 X 1.50

02-6181-05 SCREW, HHC, 5/16-18 X 1.50

02-6191-03 SCREW, HHC, 5/16-18 X 2

02-6191-05 SCREW, HHC, 5/16-18 X 2

02-6430-03 NUT, HEX, 3/8-16

02-6430-08 NUT, HEX, 3/8-16

02-6730-03 WASHER, FLAT(.390 X.625 X.063)

02-6731-03 WASHER, FLAT(.344 X.688 X.063)

02-6731-05 WASHER, FLAT(.344 X.688 X.063)

02-6802-08 WASHER, DISC SPRNG(.413 X.906)

02-7010-01 PIPE PLUG, 1" NPT, AL

02-7010-02 PIPE PLUG, 1" NPT, CI

02-7010-03 PIPE PLUG, 1" NPT, SS

02-7011-01 PIPE PLUG, 1" BSPT, AL

02-7011-03 PIPE PLUG, 1" BSPT, SS

02-7012-20 PIPE PLUG, P200, 1-1/4" NPT

02-7100-03-85 CLAMP BAND, SMALL

02-7200-03-85 CLAMP BAND, MEDIUM

02-7300-03-400 CLAMP BAND, LARGE, NESTED

02-7300-03-85 CLAMP BAND, LARGE

02-7300-08-400 CLAMP BAND, LARGE, NESTED

02-7430-08 NIPPLE, CLOSE, 3/4" NPT

02-7652-10-385 ASSY, STAND 1", EHEDG

02-7825-17 CAP, 1/4-20, SHCS 3A ADS

02-7843-03 ELBOW, STREET, 90 DEG, 1/2"

02-9030-12 BOX, 12X10X13

02-9030-12-500 BOX

02-9034-12 BOX, P200 ADV

02-9042-12 BOX, P2 BOLTED

02-9102-12 INSERT, BOTTOM. P200 METAL

02-9150-12 INSERT, COMBO

02-9370-12-400 INSERT, CARDBOARD, M2R

04-1010-50 DIAPHRAGM, PRIMARY, POLYURETHA

04-1010-51 DIAPHRAGM, PRIMARY, NEOPRENE

04-1010-52 DIAPHRAGM, PRIMARY, BUNA

04-1010-53 DIAPHRAGM, PRIMARY, VITON

04-1010-54 DIAPHRAGM, PRIMARY, NORDEL

04-1010-55 DIAPHRAGM, PRIMARY, PTFE

04-1010-55-42 DIAPHRAGM, PRIMARY, BOLTED

04-1010-55E DIAPHRAGM, PRIMARY, PTFE PKG 2

04-1010-56 DIAPHRAGM, PRIMARY, SANIFLEX

04-1010-56E DIAPHRAGM, PRIMARY, FSS PKG 2

04-1010-58 DIAPHRAGM, PRIMARY, WILFLEX

04-1010-74 DIAPHRAGM, PRIMARY, FDA EPDM

04-1010-74E DIAPHRAGM, PRIMARY, FES PKG 2

04-1011-57 DIAPHRAGM, PRI H400S, SIMPLEX

04-1020-51 DIAPHRAGM, PRIMARY, UF, NEO

04-1020-52 DIAPHRAGM, PRIMARY, UF, BUNA

04-1020-53 DIAPHRAGM, PRIMARY, UF, VITON

04-1020-54 DIAPHRAGM, PRIMARY, UF, NORDEL

04-1020-54E DIAPHRAGM, PRIMARY, EPU PKG 2

04-1022-15 DIAPHRAGM, PRIMARY, EZ GEOLAST

04-1022-50 DIAPHRAGM, PRIMARY, EZ POLY

04-1022-56 DIAPHRAGM, PRIMARY EZ SANIFLEX

04-1022-56E DIAPHRAGM, PRIMARY ZSS PKG 2

04-1022-57 DIAPHRAGM, PRIMARY, EZ, FG WF

04-1022-58 DIAPHRAGM, PRIMARY, EZ WILFLEX

04-1030-72 DIAPHRAGM, PRIMARY, SIPD

04-1030-72E DIAPHRAGM, PRIMARY LEL PKG 2

04-1031-56 DIAPHRAGM, PRIMARY, SIPD

04-1031-56E DIAPHRAGM, PRIMARY, FSL PKG 2

04-1031-57 DIAPHRAGM, PRIMARY, FSIPD

04-1031-58 DIAPHRAGM, PRIMARY, IPD

04-1040-55 DIAPHRAGM, PRIMARY, FULL FLOW

04-1040-55-42 DIAPHRAGM, PRI FULL FLOW BOLT

04-1040-55E DIAPHRAGM, PRIMARY, FFLO PKG 2

04-1060-51 DIAPHRAGM, BACK-UP, NEOPRENE

04-1060-54 DIAPHRAGM, BACK-UP, NORDEL

04-1060-54E DIAPHRAGM, BACK-UP, TEU, PKG 2

04-1060-55 DIAPHRAGM, BACK UP, SANITARY

04-1060-55E DIAPHRAGM, BACK UP, SANI PKG 2

04-1060-56 DIAPHRAGM, BACK-UP, SANIFLEX

04-1060-56E DIAPHRAGM, BACK-UP, TSU, PKG 2

04-1060-86 DIAPHRAGM, BACK-UP, ESD BUNA

04-1065-56 DIAPHRAGM, BU, FSS, FULL FLOW

04-1065-56E DIAPHRAGM, BU, FSS, FFLO PKG 2

04-1065-57 DIAPHRAGM, BU, FWS, FULL FLOW

04-1080-50 BALL, VALVE, POLYURETHANE

04-1080-51 BALL, VALVE, NEOPRENE

04-1080-51-50 BALL, VALVE, NEOPRENE,STALLION

04-1080-52 BALL, VALVE, BUNA

04-1080-52-50 BALL, VALVE, BUNA,STALLION

04-1080-53 BALL, VALVE, VITON

04-1080-53-50 BALL, VALVE, VITON,STALLION

04-1080-54 BALL, VALVE, NORDEL

04-1080-54-50 BALL, VALVE, NORDEL,STALLION

04-1080-55 BALL, VALVE, TEFLON, 1.875-IN

04-1080-55E BALL, VALVE, TF, 1.875" PKG 4

04-1080-56 BALL, VALVE, SANIFLEX, 1.875"

04-1080-56E BALL, VALVE, FS PKG 4

04-1080-57 BALL, VALVE, FDA WILFLEX 1.875

04-1080-58 BALL, VALVE, WILFLEX

04-1080-74 BALL, VALVE, FDA EPDM, 1.875"

04-1080-74E BALL, VALVE, FE PKG 4

04-1085-55 BALL, VALVE 2.125-IN

04-1096-55 MUSHROOM VALVE, SANIFLO HS

04-1120-20-500 SEAT, VALVE, POLY, CHAMP

04-1120-21-500 SEAT, VALVE, PVDF, CHAMP

04-1120-50 SEAT, VALVE, POLYURETHANE

04-1120-51 SEAT, VALVE, NEOPRENE

04-1120-51-50 SEAT, VALVE, NEOPRENE,STALLION

04-1120-52 SEAT, VALVE, BUNA

04-1120-52-50 SEAT, VALVE, BUNA,STALLION

04-1120-53 SEAT, VALVE, VITON

04-1120-54 SEAT, VALVE, NORDEL

04-1120-54-50 SEAT, VALVE, NORDEL,STALLION

04-1120-56 SEAT, VALVE, SANIFLEX

04-1120-56E SEAT, VALVE, FS PKG 4

04-1120-57 SEAT, VALVE, FDA WILFLEX

04-1120-58 SEAT, VALVE, WILFLEX

04-1121-01 SEAT, VALVE, REVERS, ALUMINUM

04-1121-03 SEAT, VALVE, REVERS, SS

04-1121-03E SEAT, VALVE, REVERS, SS, PASSI

04-1121-03P SEAT, VALVE, REVERS, SS, PASSI

04-1121-04 SEAT, VALVE, REVERS, HASTELLOY

04-1121-08 SEAT, VALVE, REVERS, MILD STEE

04-1125-01 SEAT, VALVE, BOLTED, ALUMINUM

04-1125-03 SEAT, VALVE, BOLTED, SS

04-1125-20 SEAT, VALVE, BLTD

04-1125-21 SEAT VALVE, ADV

04-1125-50 SEAT, VALVE, BOLTED, POLY

04-1125-51 SEAT, VALVE, BOLTED, NEO

04-1125-52 SEAT, VALVE, BOLTED, BUNA

04-1125-53 SEAT, VALVE, BOLTED, VITON

04-1125-54 SEAT, VALVE, BOLTED, NORDEL

04-1125-56 SEAT, VALVE, BOLTED, SANIFLEX

04-1125-57 SEAT VALVE, BOLTED PLASTIC

04-1125-58 SEAT VALVE, BOLTED, WILFLEX

04-1128-50 SEAT, VALVE, 400, SS DROPIN PU

04-1128-51 SEAT, VALVE, 400, SS DROPIN NE

04-1128-52 SEAT, VALVE, 400, SS DROPIN BN

04-1128-53 SEAT, VALVE, 400, SS DROPIN VT

04-1128-54 SEAT, VALVE, 400, SS DROPIN EP

04-1128-56 SEAT, VALVE, 400, SS DROPIN FS

04-1128-58 SEAT, VALVE, 400, SS DROPIN WF

04-1129-01 SEAT, VALVE, 420/430, FIT

04-1129-03 SEAT, VALVE, 400, SS, DROP IN

04-1129-08 SEAT, VALVE, 420/430, FIT

04-1135-01 SEAT, PLUG, H400S

04-1135-03 SEAT, PLUG, H400S, SS

04-1137-01 SEAT, PLUG, HS430S, ALUM

04-1137-03 SEAT, PLUG, HS430S, SS

04-1200-50-500 O-RING, (2.609 X.139)POLY,CHP

04-1200-52-500 O-RING, (2.609 X.139)BUNA,CHP

04-1200-55 O-RING, (1.984 X.139)TEFLON

04-1200-55E O-RING, (1.984X.139) TF PKG 4

04-1200-60-500 O-RING, (2.609 X.139)TFE/VT,CH

04-1205-55 O-RING (2.734 X .139) PTFE

04-1215-55 GASKET, MAN, 1 1/2 EHEDG,TF

04-1215-55E GASKET, MANIFOLD, EHEDG PKG 8

04-1215-68E GASKET, MANIFOLD, EHEDG PKG 8

04-1215-69 GASKET, MAN, 1 1/2" EHEDG,FB

04-1215-69E GASKET, MANIFOLD, EHEDG PKG 8

04-1215-74 GASKET, MAN, 1 1/2" EHEDG,FE

04-1215-74E GASKET, MANIFOLD, EHEDG PKG 8

04-1300-50-500 O-RING, (2.734 X.139)POLY,CHP

04-1300-52-500 O-RING, (2.734 X.139)BUNA,CHP

04-1300-60-500 O-RING, (2.734 X.139)TFE/VT,CH

04-1320-48-500 GASKET, T-SECTION, CHAMP

04-1325-51 GASKET, BOLTED, TEE, NEO

04-1325-52 GASKET, BOLTED, TEE, BUNA

04-1325-53 GASKET, BOLTED, TEE, VITON

04-1325-54 GASKET, BOLTED, TEE, NORDEL

04-1325-55 GASKET, BOLTED, TEE, PTFE

04-1325-58 GASKET, BOLTED, TEE, WILFLEX

04-1370-55 O-RING, (3.359 X.139)PTFE

04-1371-52 O-RING (3.350 X .210) BUNA

04-1371-58 O-RING (3.350 X .210) WF

04-1371-60 O-RING (3.350 X .210) ENC/VT

04-1375-55 GASKET, T-SECT, 1 1/2 EHEDG,TF

04-1375-55E GASKET, T-SECT, EHEDG,TF PKG 4

04-1375-68E GASKET, T-SECT, EHEDG,FV PKG 4

04-1375-69E GASKET, T-SECT, EHEDG,FB PKG 4

04-1375-74 GASKET, T-SECT, 1 1/2 EHEDG,FE

04-1375-74E GASKET, T-SECT, EHEDG,FE PKG 4

04-1400-48-500 GASKET, MANIFOLD ELBOW, CHAMP

04-2000-07 AIR VALVE ASSEMBLY, T4

04-2000-20-700 ASSY, AIR VALVE, P4/P8

04-2011-20 ASSY, AIR VALVE, P4/P8, PCMI

04-2030-01 ASSY, AIR VALVE, PV4/PV15

04-2030-03 ASSY, AIR VALVE, PV4/PV15, SS

04-2030-06 ASSY, AIR VALVE, PV4/15, NP

04-2030-11 ASSY, AIR VALVE, PV4 ANODIZED

04-2031-01 ASSY, AIR VALVE,PV4/PV15,PCMI

04-2038-01 ASSY, AIR VALVE, PS 4-15, PCMI

04-2038-11 ASSY, AIR VALVE, PS4, ANO PCMI

04-2038-20 ASSY, AIR VALVE, PS 4-15, PCMI

04-2039-01 ASSY, AIR VALVE, PS 4-15

04-2039-03 ASSY, AIR VALVE, PS 4-15

04-2039-06 ASSY, AIR VALVE, PS 4-15, NP

04-2039-11 ASSY, AIR VALVE, PS4-15 ANO

04-2039-20 ASSY, AIR VALVE, PS 4-15

04-2300-23 END CAP W/GUIDE, T4, TURBO

04-2330-20-700 END CAP, P4/P8

04-2330-23 END CAP W/O GUIDE, T4, TURBO

04-2333-20 END CAP, P4/P8, PCM I

04-2340-01 END CAP, PV4

04-2340-03 END CAP, PV/PX4-15

04-2340-06 END CAP, PV4, NICKEL PLTD

04-2343-01 END CAP, PV/PX4, PCM I

04-2390-52 O-RING, (.984 X.139)BUNA

04-2390-52-700 O-RING, (1.859 X.139)BUNA,PRO-

04-2500-03 SCREEN, AIR VALVE

04-2500-07 SCREEN, AIR VALVE, T4, TURBO

04-2600-52 GASKET, AIR VALVE, T4, TURBO

04-2600-52-700 GASKET, AIR VALVE, P4/P8

04-2620-52 GASKET, THERMAL ISOLATOR, PV4

04-2621-52 GASKET, THERMAL ISOLATOR,PVSUB

04-2638-52 GASKET, AIR VALVE, PS4-15, SUB

04-2638-56 GASKET, AIR VALVE, PS4-15, SUB

04-2639-52 GASKET, AIR VALVE, PS4-15

04-2639-56 GASKET, AIR VALVE, PS4-15

04-2650-03 RETAINING RING, AIR VALVE

04-2650-49-700 O-RING, (.208 X.070)POLY-PRO-F

04-2785-52 O-RING, (.487 X.103)-112,BUNA

04-3100-01-225 CENTER BLOCK, T4, ALUM

04-3110-20 CENTER BLOCK, P4/P8

04-3129-01 CENTER BLOCK, ASSY, PS4/8

04-3129-03 CENTER BLOCK, ASSY, PS4/8

04-3129-06 CENTER BLOCK ASSY, PS4/PS8 NP

04-3129-20 CENTER BLOCK, ASSY, PS4/8

04-3150-20-225 CENTER SECTION, T4, POLY

04-3180-20 MUFFLER PLATE, T4, PLASTIC

04-3180-20-700 MUFFLER PLATE, P4/P8

04-3185-01 MUFFLER PLATE, PV4

04-3185-03 MUFFLER PLATE, PV4

04-3185-06 MUFFLER PLATE, PV4, NICKEL PLT

04-3189-01 MUFFLER PLATE, PS 4-15

04-3189-03 MUFFLER PLATE, PS4-15

04-3189-06 MUFFLER PLATE, PS4-15, NICKEL

04-3189-20 MUFFLER PLATE, PS4-15, POLY

04-3219-49 O-RING, CONTROL SPOOL, OVAL SHAPE, .165X.725ID

04-3240-07 MUFFLER, BRONZE, 1/4" PS4-15

04-3500-52 GASKET, MUFFLER PLATE, T4

04-3500-52-700 GASKET, MUFFLER PLATE, P4/P8

04-3502-52 GASKET, MUFFLER PLATE, PV4-15

04-3509-52 GASKET, MUFFLER PLATE PS4-15

04-3509-56 GASKET, MUFFLER PLATE PS4-15

04-3510-99 MUFFLER, PLASTIC, 3/4"

04-3513-99 MUFFLER, STEEL, ASSY 1-1/2 NPT

04-3518-99R MUFFLER, METAL, 1-1/2"

04-3520-30 GASKET, T4 ALUM CENTER BLOCK

04-3520-52 GASKET, CENTER BLOCK, T4,TURBO

04-3525-52 GASKET, P4/P8 BILLET CTR BLK,

04-3526-52 GASKET, CENTER BLOCK, P4/P8

04-3526-56 GASKET, CENTER BLOCK, P4/P8

04-3529-52 GASKET, CENTER BLOCK, PV4-PV15

04-3529-56 GASKET, CENTER BLOCK, PS4-PS15

04-3650-05 CHAMBER, AIR,T4,PFA

04-3650-08 CHAMBER, AIR, T4, MILD STEEL

04-3651-01 CHAMBER, AIR,P4,DC,ALUM

04-3651-03 CHAMBER, AIR, P4 SS

04-3651-05 CHAMBER, AIR,P4,DC,PFA

04-3651-73 CHAMBER, AIR,P4,DC,HALAR

04-3660-01 CHAMBER, AIR, PV4

04-3660-03 CHAMBER, AIR, PV4, SS

04-3660-05 CHAMBER, AIR, PV4 PFA COATED

04-3660-06 CHAMBER, AIR, PV4 NICKEL PLTD

04-3681-01 CHAMBER,AIR,P4,BLTD,DC (ALUM)

04-3681-20 CHAMBER, AIR, P400 ADV PLST

04-3685-01 CHAMBER, AIR, P400, SC (SS)

04-3685-03 CHAMBER, AIR, P400 SS

04-3689-20 CHAMBER, AIR,PX/PS400 ADV PLAS

04-3694-01 CHAMBER, AIR, PV400/H400 ALUM

04-3694-03 CHAMBER, AIR, PV400/H400, S.S.

04-3696-01 CHAMBER, AIR, PV400, SS & HAST

04-3698-03 CHAMBER, AIR, PX420/430, SS

04-3700-01-700 PISTON, INNER, P4 (NON-PTFE)

04-3700-08 PISTON, INNER, T4, (NON-PTFE)

04-3752-01 PISTON, INNER, T4/P4, PTFE

04-3755-01 PISTON, INNER, 1.5" IPD

04-3760-01-700 PISTON, INNER, P4 (ULTRA-FLEX)

04-3760-08 PISTON, INNER, T4, ULTRA-FLEX

04-3800-03-07 SHAFT, STRA, T4, NON-PTFE, SS

04-3800-03-700 SHAFT, PRO-FLO, NON-PTFE, SS

04-3811-03 SHAFT, P4 PLAST ADV, RUB, SS

04-3820-03-07 SHAFT, STRAIGHT, T4, PTFE, SS

04-3820-03-700 SHAFT, PRO-FLO, PTFE, SS

04-3830-03-07 SHAFT, STRA, T4,ULTRA-FLEX,SS

04-3830-03-700 SHAFT, PRO-FLO, ULTRA-FLEX,SS

04-3842-03 SHAFT, P400 PLAST, PTFE

04-3845-08 SHAFT, PV H400S

04-3846-08 SHAFT, PV H400S, S.S.

04-3848-03 SHAFT, PS4 STALLION, TPE

04-3858-13 SPOOL, AIR CONTROL ADV PLASTIC

04-3859-03 SPOOL, AIR CONTROL, PS4 - 8

04-3859-13 SPOOL, AIR CONTROL PS4-8

04-3860-08 SPACER, ULTRA-FLEX, T4 TURBO

04-3879-50 O-RING, (.612X.103) CNTL SPOOL

04-3880-99 ASSY, PILOT SLEEVE, P4/P8

04-3882-99 ASSY, PILOT SLEEVE, P400/P800

04-3890-03 RETAINING RING,REMOVBLE SLEEVE

04-4550-03 PISTON, OUTER, (NON-PTFE)

04-4550-03P PISTON, OUTER, (RUBBER) PASSIV

04-4550-04 PISTON, OUTER, (NON-PTFE)

04-4550-08 PISTON, OUTER, (NON-PTFE)

04-4550-10-385P PISTON, OUTER (NON-PTFE) PASSI

04-4550-20-500 PISTON, OUTER, (NON-PTFE)

04-4550-21-500 PISTON, OUTER, (NON-PTFE)

04-4552-01 PISTON, OUTER, (NON-PTFE)

04-4560-01 PISTON, OUTER, (ULTRA-FLEX)

04-4560-02 PISTON, OUTER, (ULTRA-FLEX)

04-4560-21 PISTON, OUTER, (ULTRA-FLEX)

04-4565-03 PISTON, OUTER, H400S

04-4600-01 PISTON, OUTER, (PTFE)

04-4600-03 PISTON, OUTER, (PTFE)

04-4600-03P PISTON, OUTER (PTFE) PASSIVATE

04-4600-04 PISTON, OUTER, (PTFE)

04-4600-10-385P PISTON, OUTER (PTFE) PASSIVATE

04-4600-20-500 PISTON, OUTER, (PTFE)

04-4600-21-500 PISTON, OUTER, (PTFE)

04-5000-01 CHAMBER, LIQUID

04-5000-02 CHAMBER, LIQUID

04-5000-03 CHAMBER, LIQUID

04-5000-03P CHAMBER, LIQUID, PASSIVATED

04-5000-04-42 CHAMBER, LIQUID, BOLTED

04-5000-10-385P CHAMBER, LIQUID, 1 1/2 EHEDG

04-5000-20 CHAMBER, LIQUID

04-5000-21 CHAMBER, LIQUID

04-5005-20 CHAMBER, LIQUID, ADV

04-5005-21 CHAMBER, LIQUID, ADV

04-5010-01 BALL RING

04-5015-01 CHAMBER, LIQUID, 420/430

04-5015-02 CHAMBER, LIQUID, 420/430

04-5015-03 CHAMBER, LIQUID, 420/430, SS

04-5020-01 MANIFOLD, DISCHARGE

04-5020-01-14 MANIFOLD, DISCHARGE, BSPT

04-5020-02 MANIFOLD, DISCHARGE

04-5020-02-14 MANIFOLD, DISCHARGE, BSPT

04-5020-03 MANIFOLD, DISCHARGE

04-5020-03-14 MANIFOLD, DISCHARGE, BSPT

04-5020-03-42 MANIFOLD, DISCH, BOLTED, ANSI

04-5020-03-70P MANIFOLD, DISCH., TRI-CLOVER

04-5030-20 MANIFOLD, DISCH, ADV ANSI

04-5030-21 MANIFOLD, DISCH, ADV ANSI

04-5031-20 MANIFOLD, DISCH, ADV DIN

04-5031-21 MANIFOLD, DISCH, ADV DIN

04-5035-01 MANIFOLD, DISCHARGE, 420, NPT

04-5035-02 MANIFOLD, DISCHARGE, 420 NPT

04-5035-03 MANIFOLD, DISCHARGE, 420, NPT

04-5036-01 MANIFOLD, DISCHARGE, 420, BSPT

04-5036-02 MANIFOLD, DISCHARGE, 420 BSPT

04-5036-03 MANIFOLD, DISCHARGE, 420, BSPT

04-5037-01 MANIFOLD, DISCH VERT, 420, NPT

04-5037-02 MANIFOLD, DISCH VERT, 420, NPT

04-5037-03 MANIFOLD, DISCH VERT, 420, NPT

04-5038-01 MANIFOLD, DISCH VER, 420 BSPT

04-5038-02 MANIFOLD, DISCH VER, 420 BSPT

04-5038-03 MANIFOLD, DISCH VER, 420 BSPT

04-5045-01 MANIFOLD, DISCH, 430, ANSI

04-5045-02 MANIFOLD, DISCH. 430 ANSI

04-5045-03 MANIFOLD, DISCH, 430, ANSI

04-5046-01 MANIFOLD, DISCH, 430, DIN

04-5046-02 MANIFOLD, DISCH. 430, DIN

04-5046-03 MANIFOLD, DISCH, 430, DIN

04-5047-01 MANIFOLD, DI, 430, ANSI, H400S

04-5080-01 MANIFOLD, INLET, FOOTED

04-5080-01-14 MANIFOLD, INLET, FOOTED-BSPT

04-5080-02 MANIFOLD, INLET, FOOTED

04-5080-02-14 MANIFOLD, INLET, FOOTED-BSPT

04-5080-03 MANIFOLD, INLET, FOOTED

04-5080-03-14 MANIFOLD, INLET, FOOTED, BSPT

04-5080-03-42 MANIFOLD, INLET, BOLTED, ANSI

04-5080-03-43 MANIFOLD, INLET, BOLTED, DIN

04-5080-03-70P MANIFOLD, INLET, TRI-CLOVER

04-5090-20 MANIFOLD, INLET, ADV ANSI

04-5090-21 MANIFOLD, INLET, ADV ANSI

04-5091-20 MANIFOLD, INLET, ADV DIN

04-5091-21 MANIFOLD, INLET, ADV DIN

04-5095-01 MANIFOLD, INLET, 420, NPT

04-5095-02 MANIFOLD, INLET, 420 NPT

04-5095-03 MANIFOLD, INLET, 420, NPT

04-5096-01 MANIFOLD, INLET, 420, BSPT

04-5096-02 MANIFOLD, INLET, 420 BSPT

04-5096-03 MANIFOLD, INLET, 420, BSPT

04-5125-01 MANIFOLD, INLET, 430, ANSI

04-5125-02 MANIFOLD, INLET, 430, ANSI

04-5125-03 MANIFOLD, INLET, 430, ANSI

04-5126-01 MANIFOLD, INLET, 430, DIN

04-5126-02 MANIFOLD, INLET, 430, DIN

04-5126-03 MANIFOLD, INLET, 430, DIN

04-5127-01 MANIFOLD, IN, 430, ANSI, H400S

04-5127-03 MANIFOLD, IN, 430, ANSI, H430S

04-5160-10-385P T-SECTION, 1 1/2 EHEDG

04-5160-10-386P T-SECTION, 1 1/2" EHEDG DIN

04-5160-20 T-SECTION, (ANSI)

04-5160-20-504 T-SECTION, (DIN)

04-5160-21 T-SECTION, (ANSI)

04-5181-01 T-SECTION, H400S, (ANSI)

04-5220-20 ELBOW, INLET MANIFOLD

04-5220-21 ELBOW, INLET MANIFOLD

04-5230-20 ELBOW, DISCHARGE MANIFOLD

04-5230-21 ELBOW, DISCHARGE MANIFOLD

04-5250-01 ELBOW, DISCHARGE, BOLTED

04-5350-10-385P BALL CAGE, 1 1/2 EHEDG

04-5431-10-385P HOUSING, MUSHROOM VALVE 1 1/2

04-5620-01 SCREEN, ALUMINUM

04-5620-62 SCREEN, STALLION, POLYURETHANE

04-5660-01 COVER, SUCTION HOOK UP

04-6000-03 SCREW, SHC, 1/4-20 X 2

04-6000-03-500 SCREW, SHC, 1/4-20 X 6 11/16

04-6000-05-500 SCREW, SHC, 1/4-20 X 6 11/32

04-6000-08 SCREW, SHC, 1/4-20 X 2

04-6050-08 BOLT, RHSN, 1/4-20 X 2

04-6070-03 BOLT, RHSN, 5/16-18 X 2 1/2

04-6070-05 BOLT, RHSN, 5/16-18 X 2 1/2

04-6070-08 BOLT, RHSN, 5/16-18 X 2 1/2

04-6090-08 SCREW, HHC, 1/2-20 X 1

04-6091-08 SCREW, HHC, 1/2-20 X 1 1/2

04-6130-08 SCREW, HHC, 1/4-20 X 3,GR5

04-6131-08 SCREW, HHC, 1/4-20 X 3,GR8

04-6136-08 SCREW, HHC, 1/4-20 X 3 1/4,GR8

04-6140-08 SCREW, HHC, 3/8-16 X 1 1/4

04-6150-08 STUD, 1/2-20 X 1 1/2

04-6152-08 STUD, 3/8-16 X 1 1/2

04-6180-03 SCREW, HHC, 1/2-13 X 1 1/2

04-6180-08 SCREW, HHC, 1/2-13 X 1 1/2

04-6181-03 SCREW, HHC, 3/8-16 X 1.75

04-6181-05 SCREW, HHC, 3/8-16 X 1.75, PFA

04-6190-03 SCREW, HHC, 3/8-16 X 1 1/4

04-6191-03 SCREW, HHC, 3/8-16 X 3.50

04-6191-05 SCREW, HHC, 3/8-16 X 3.50, PFA

04-6210-03 SCREW, HHC, 1/2-13 X 2

04-6210-05 SCREW, HHC, 1/2-13 X 2.00,PFA

04-6210-08 SCREW, HHC, 1/2-13 X 2

04-6345-08 GRD SCR,SELF TAPPING,10-32X.50

04-6351-03 SCREW, SHC, 10-16 X 1 3/4

04-6351-05 SCREW, SHC, 10-16 X 1 3/4, PFA

04-6400-03 NUT, HEX, 1/4-20

04-6400-05 NUT, HEX, 1/4-20

04-6400-08 NUT, HEX, 1/4-20

04-6420-08 NUT, HEX, 5/16-18

04-6435-03 NUT, HEX FLANGE 3/8

04-6435-05 NUT, HEX FLANGE 3/8, PFA

04-6651-10 WING NUT, SMALL CLAMP

04-6700-07-70 WASHER, FLAT(.251 X.620 X.062)

04-6730-03 WASHER, FLAT(.531 X1.062 X.095

04-6730-05 WASHER, FLAT(.531 X1.062 X.095

04-6730-08 WASHER, FLAT(.531 X1.062 X.095

04-6740-03 WASHER, FLAT(.406 X.812 X.065)

04-6741-03 WASHER, FLAT(.406 X.875 X.125)

04-6800-08 WASHER, RNFR(.531X2.188X.1943)

04-6950-20-700 BUSHING, REDUCER, 3/4" TO 1/2"

04-6959-03 BUSHING, REDUCER, 1-1/2" TO 1"

04-6959-08 BUSHING, REDUCER, 1-1/2" TO 1"

04-6959-17 BUSHING, REDUCER, 1-1/2" TO 1"

04-7010-01 PLUG PIPE, 1-1/2" NPT SQ

04-7011-03 PLUG PIPE, 1 1/2-IN BSPT SS

04-7100-03 CLAMP BAND, SMALL, NESTED

04-7100-03-500 CLAMP BAND, SMALL, NESTED

04-7100-08 CLAMP BAND, SMALL, NESTED

04-7104-03 ASSEMBLY, CLAMP BAND, 2 1/2"

04-7300-03 CLAMP BAND, LARGE, NESTED

04-7300-03-500 CLAMP BAND, LARGE, NESTED

04-7300-08 CLAMP BAND, LARGE, NESTED

04-7330-03 CLAMP BAND, LARGE, NESTED

04-7330-08 CLAMP BAND, LARGE, NESTED

04-7710-08 SLEEVE,THREADED,C-BLK,PRO-FLO

04-9030-12 BOX, 16-1/4 X 14-1/8 X 18-1/2

04-9030-12-500 BOX, 17-7/8 X 13-3/4 X 22-3/16

04-9034-12 BOX, BOLTED PUMP (ALL)

04-9042-12 BOX, PLASTIC ADV

04-9052-12 INSERT, TOP, BOLTED (SS & H)

04-9100-12 INSERT, BOTTOM

04-9100-12-500 INSERT, BOTTOM

04-9102-12 INSERT, BOTTOM, BOLTED (ALL)

04-9131-12 INSERT, COMBO, PLASTIC ADV

04-9295-03 ASSY, AIR CONTROL SPOOL, PS4-PS8

05-1370-60 O-RING (1.484 X .139)ENCAPVIT

05-6740-05 WASHER (.406 X .812 X .065)PFA

08-1010-50 DIAPHRAGM, PRIMARY, POLYURETHA

08-1010-51 DIAPHRAGM, PRIMARY, NEOPRENE

08-1010-51-06 DIAPHRAGM, PRIMARY, DOME SHAPE

08-1010-52 DIAPHRAGM, PRIMARY, BUNA

08-1010-52-06 DIAPHRAGM, PRIMARY, DOME SHAPE

08-1010-53 DIAPHRAGM, PRIMARY, VITON

08-1010-53-06 DIAPHRAGM, PRIMARY, DOME SHAPE

08-1010-54 DIAPHRAGM, PRIMARY, NORDEL

08-1010-54-06 DIAPHRAGM, PRIMARY, DOME SHAPE

08-1010-55 DIAPHRAGM, PRIMARY, PTFE

08-1010-55-42 DIAPHRAGM, PRIMARY, BOLTED

08-1010-55E DIAPHRAGM, PRIMARY, PTFE PKG 2

08-1010-56 DIAPHRAGM, PRIMARY, SANIFLEX

08-1010-56E DIAPHRAGM, PRIMARY, FSS PKG 2

08-1010-58 DIAPHRAGM, PRIMARY, WILFLEX

08-1010-74 DIAPHRAGM, PRIMARY, FDA EPDM

08-1010-74E DIAPHRAGM, PRIMARY, FES PKG 2

08-1011-55 DIAPHRAGM, PRIMARY, H800 FFLOW

08-1011-55E DIAPHRAGM, PRI,H800 FFLO PKG 2

08-1011-57 DIAPHRAGM, PRIMARY, H800

08-1012-51 DIAPHRAGM, FLAP VALVE, NE

08-1012-52 DIAPHRAGM, FLAP VALVE, BN

08-1020-51 DIAPHRAGM, PRIMARY, UF, NEO

08-1020-52 DIAPHRAGM, PRIMARY, UF, BUNA

08-1020-52E DIAPHRAGM, PRIMARY, BNU PKG 2

08-1020-53 DIAPHRAGM, PRIMARY, UF, VITON

08-1020-54 DIAPHRAGM, PRIMARY, UF, NORDEL

08-1020-54E DIAPHRAGM, PRIMARY, EPU PKG 2

08-1022-15 DIAPHRAGM, PRIMARY, EZ GEOLAST

08-1022-50 DIAPHRAGM, PRIMARY, EZ POLY

08-1022-56 DIAPHRAGM, PRIMARY EZ SANIFLEX

08-1022-56E DIAPHRAGM, PRIMARY ZSS PKG 2

08-1022-57 DIAPHRAGM, PRIMARY, EZ, FG WF

08-1022-58 DIAPHRAGM, PRIMARY, EZ WILFLEX

08-1030-72 DIAPHRAGM, PRIMARY, SIPD

08-1030-72E DIAPHRAGM, PRIMARY LEL PKG 2

08-1031-56 DIAPHRAGM, PRIMARY, SIPD

08-1031-56E DIAPHRAGM, PRIMARY, FSL PKG 2

08-1031-57 DIAPHRAGM, PRIMARY, FSIPD

08-1031-58 DIAPHRAGM, PRIMARY, IPD

08-1032-57 DIAPHRAGM, FSIPD, H800/H1500

08-1032-58 DIAPHRAGM, FSIPD, H800/H1500

08-1040-55 DIAPHRAGM, PRIMARY, FULL FLOW

08-1040-55-42 DIAPHRAGM, PRI, FULL FLOW BOLT

08-1040-55E DIAPHRAGM, PRIMARY, FFLO PKG 2

08-1060-51 DIAPHRAGM, BACK-UP, NEOPRENE

08-1060-54 DIAPHRAGM, BACK-UP, NORDEL

08-1060-54E DIAPHRAGM, BACK-UP, TEU, PKG 2

08-1060-55 DIAPHRAGM, BACK UP, SANITARY

08-1060-55E DIAPHRAGM, BACK UP, SANI PKG 2

08-1060-56 DIAPHRAGM, BACK-UP, SANIFLEX

08-1060-56E DIAPHRAGM, BACK-UP, TSU, PKG 2

08-1065-56 DIAPHRAGM, BU, FSS, FULL FLOW

08-1065-56E DIAPHRAGM, BU, FSS, FFLO PKG 2

08-1065-57 DIAPHRAGM, BU, FWS, FULL FLOW

08-1067-57 DIAPHRAGM, BU, H800, FULL FLOW

08-1080-50 BALL, VALVE, POLYURETHANE

08-1080-51 BALL, VALVE, NEOPRENE

08-1080-51-50 BALL, VALVE, NEOPRENE,STALLION

08-1080-52 BALL, VALVE, BUNA

08-1080-52-50 BALL, VALVE, BUNA,STALLION

08-1080-53 BALL, VALVE, VITON

08-1080-53-50 BALL, VALVE, VITON,STALLION

08-1080-54 BALL, VALVE, NORDEL

08-1080-54-50 BALL, VALVE, NORDEL,STALLION

08-1080-55 BALL, VALVE, TEFLON

08-1080-55E BALL, VALVE, TF PKG 4

08-1080-56 BALL, VALVE, SANIFLEX

08-1080-56-50 BALL, VALVE, SANIFLEX,STALLION

08-1080-56-50E BALL, VALVE, FS,STALLION PKG 4

08-1080-56E BALL, VALVE, FS PKG 4

08-1080-57 BALL, VALVE, FDA WIL-FLEX

08-1080-58 BALL, VALVE, WILFLEX

08-1080-58-50 BALL, VALVE, WILFLEX,STALLION

08-1080-62-50 BALL, VALVE, POLY-E,STALLION

08-1086-55 BALL, VALVE,PTFE, 2" EHEDG

08-1086-55E BALL, VALVE, TF, EHEDG PKG 4

08-1086-56 BALL, VALVE, SANIFLEX,2" EHEDG

08-1086-56E BALL, VALVE, FS,2" EHEDG PKG 4

08-1086-57 BALL, VALVE, FDA WIL-FLEX, 2"

08-1086-74 BALL, VALVE, FDA EPDM, 2" EHED

08-1086-74E BALL, VALVE, FE 2" EHEDG PKG 4

08-1096-55 MUSHROOM VALVE, SANIFLO HS

08-1120-03-60 SEAT, VALVE, SS, HP

08-1120-08-60 SEAT, VALVE, H800, MILD STEEL

08-1120-20-500 SEAT, VALVE, POLY, CHAMP

08-1120-21-500 SEAT, VALVE, PVDF, CHAMP

08-1120-50 SEAT, VALVE, POLYURETHANE

08-1120-51 SEAT, VALVE, NEOPRENE

08-1120-51-50 SEAT, VALVE, NEOPRENE,STALLION

08-1120-52 SEAT, VALVE, BUNA

08-1120-52-50 SEAT, VALVE, BUNA,STALLION

08-1120-53 SEAT, VALVE, VITON

08-1120-53-50 SEAT, VALVE, VITON,STALLION

08-1120-54 SEAT, VALVE, NORDEL

08-1120-54-50 SEAT, VALVE, NORDEL,STALLION

08-1120-56 SEAT, VALVE, SANIFLEX

08-1120-56-50 SEAT, VALVE, SANIFLEX,STALLION

08-1120-56-50E SEAT, VALVE, FS,STALLION PKG 4

08-1120-56-72 SEAT, VALVE, SANIFLEX,FOOD MST

08-1120-56-72E SEAT, VALVE, FS,FOOD MST PKG 4

08-1120-56E SEAT, VALVE, FS PKG 4

08-1120-57 SEAT, VALVE, FDA WILFLEX

08-1120-58 SEAT, VALVE, WILFLEX

08-1120-58-50 SEAT, VALVE, WILFLEX,STALLION

08-1120-62-50 SEAT, VALVE, POLY-E,STALLION

08-1121-01 SEAT, VALVE, REVERS, ALUMINUM

08-1121-03 SEAT, VALVE, REVERS, STAINLESS

08-1121-03P SEAT, VALVE, REVERS, SS, PASSI

08-1121-04 SEAT, VALVE, REVERS, HASTELLOY

08-1121-08 SEAT, VALVE, REVERS, MILD STEE

08-1125-20 SEAT, VALVE, BLTD

08-1125-21 SEAT, VALVE, 800 ADV PLASTIC

08-1125-57 SEAT VALVE, BOLTED PLASTIC

08-1128-21 SEAT, VALVE, MACHINED P800

08-1128-50 SEAT, VALVE, 800 SS DROP-IN PU

08-1128-51 SEAT, VALVE, 800 SS DROP-IN NE

08-1128-52 SEAT, VALVE, 800 SS DROP-IN BN

08-1128-53 SEAT, VALVE, 800 SS DROP-IN VT

08-1128-54 SEAT, VALVE, 800 SS DROP-IN EP

08-1128-56 SEAT, VALVE, 800 SS DROP-IN FS

08-1128-58 SEAT, VALVE, 800 SS DROP-IN WF

08-1129-01 SEAT, VALVE, 820/830, FIT

08-1129-03 SEAT, VALVE, 820/830 SS DRP-IN

08-1129-08 SEAT, VALVE, 820/830, FIT

08-1150-08 SEAT, FLAP VALVE

08-1180-10-83P FLAP VALVE, LSH

08-1185-51 VALVE ASSEMBLY, FLAP, NE

08-1185-52 VALVE ASSEMBLY, FLAP, BN

08-1195-51 PAD, FLAP VALVE HINGE (NEOPREN

08-1195-52 PAD, FLAP VALVE HINGE (NITRILE

08-1196-08 RETAINER, FLAP VALVE

08-1200-50-500 O-RING, (3.850 X.210)POLY,CHP

08-1200-52-500 O-RING, (3.850 X.210)BUNA,CHP

08-1200-55 O-RING, (2.600 X.210)TEFLON

08-1200-55E O-RING, (2.600X.210) TF PKG 4

08-1200-56 O-RING, (2.600 X.210)SANIFLEX

08-1200-58 O-RING, (2.562 X.210)WILFLEX

08-1200-58-500 O-RING (3.850 X .210) WIL-FLEX

08-1200-60-500 O-RING, (3.750 X.210)TFE/VT,CH

08-1205-52 O-RING, (3.475 X 2.10) BN

08-1205-58 O-RING, (3.475 X .210) WF

08-1205-60 O-RING, (3.475 X .210) TFE/VIT

08-1209-55 O-RING, (4.225 X .210) PTFE

08-1300-50-500 O-RING, (2.225 X.210)POLY,CHP

08-1300-52-500 O-RING, (2.225 X.210)BUNA,CHP

08-1300-56-72 O-RING,(2.063 X.205)HYTREL(SAN

08-1300-58-500 O-RING (2.225 X .210) WIL-FLEX

08-1300-60-500 O-RING, (2.225 X.210)TFE/VT,CH

08-1305-51 RING, MANIFOLD SEALING (NEOPRE

08-1305-52 RING, MANIFOLD SEALING (NITRIL

08-1320-48-500 GASKET, T-SECTION, CHAMP

08-1350-56-72 O-RING, (2.500 X.265)SANIFL,FM

08-1371-52 O-RING, (4.350 X .210) BN

08-1371-58 O-RING, (4.350 X .210) WF

08-1371-60 O-RING, (4.350 X .210) TFE/VIT

08-1375-55 GASKET, T-SECTION, 2" EHEDG

08-1375-55E GASKET, T-SECTION, EHEDG PKG 2

08-1375-69 GASKET, T-SECTION, 2" EHEDG

08-1375-69E GASKET, T-SECTION, EHEDG PKG 2

08-1375-74 GASKET, T-SECTION, 2" EHEDG

08-1375-74E GASKET, T-SECTION, EHEDG PKG 2

08-1395-51 GASKET, SEAT (NEOPRENE)

08-1395-52 GASKET, SEAT (NITRILE)

08-1400-48-500 GASKET, MANIFOLD ELBOW, CHAMP

08-1401-51 GASKET, MANIFOLD (NEOPRENE)

08-1401-52 GASKET, MANIFOLD (NITRILE)

08-1450-51 BALL, CHECK, NEOPRENE

08-2000-07 AIR VALVE ASSEMBLY, T8

08-2003-01 ASSY, AIR VALVE, H800

08-2003-45 ASSY, AIR VALVE PWD CTD, H1500

08-2030-20 ASSY, AIR VALVE, PX4/PX15

08-2031-20 ASSY, AIR VALVE, PX4-15, PCMI

08-2300-23 END CAP W/ GUIDE, T8, TURBO

08-2306-23 H800 END CAP W/GUIDE

08-2330-23 END CAP W/O GUIDE, T8, TURBO

08-2336-23 H800 END CAP W/O GUIDE

08-2390-52 O-RING, (1.234 X.139)BUNA

08-2500-07 SCREEN, AIR VALVE, T8, TURBO

08-2600-52 GASKET, AIR VALVE, T8, TURBO

08-2601-52 GASKET, AIR VALVE, H800

08-2603-52 ISOLATOR GASKET H800

08-2620-52 GASKET, AIR VALVE, PX8

08-2621-52 GASKET, AIR VALVE, PX8 SUB

08-2650-03 RETAINING RING, AIR VALVE, T8

08-2700-01 MANIFOLD, BOTTM AIR VALVE H800

08-2705-01 PLATE, ISOLATOR COVER, H800

08-2740-99-60 ASSY, PRESSURE REL VALVE H800

08-2742-99-60 ASSY, PRESS REL VALVE H1500 HS

08-3000-01-60 COVER, CYLINDER

08-3000-45-60 COVER, CYLINDER H1500 HS, PC

08-3020-52-60 O-RING, (10.975 X.210)BUNA,HP

08-3025-52 O-RING (.139 X 5.234) BUNA

08-3100-01-225 CENTER BLOCK, T8, ALUM

08-3100-20-225 CENTER BLOCK, T8, POLY

08-3126-01 CENTER BLOCK ASSY, PX4/PX8

08-3126-03 CENTER BLOCK ASSY, SS PX4/PX8

08-3126-06 CENTER BLOCK ASSY, PX4/PX8 NP

08-3150-01-60 CENTER SECTION, H800

08-3158-45-60 CENTER SECTION, H1500 HS, PC

08-3185-20 MUFFLER PLATE, 04-15 PRO-FLOX

08-3200-52 O-RING, (.859 X.139)BUNA

08-3210-55-225 GLYD-RING, (.877 X.134) II, 08

08-3250-08 CONNECTOR, MUFFLER (3/4 X 45)

08-3260-52-60 GASKET, CENTER SECTION, H800

08-3300-99-60 BUSHING ASSEMBLY, CNTR. SECT.

08-3306-13 BUSHING, SHAFT PX4-PX8, ACETL

08-3502-52 GSKT, MUFFLER,ISOLATOR, PX4/15

08-3510-06R MUFFLER, 3/4", NICKEL PLATED

08-3510-99R MUFFLER, METAL, 3/4"

08-3520-52 GASKET, CENTER BLK, T8, TURBO

08-3536-52 GASKET, CENTER BLOCK, PV810

08-3550-01 CHECK BODY

08-3650-01 CHAMBER, AIR, T8, ALUM

08-3650-02 CHAMBER, MACHINED AIR ,T8, CI

08-3651-01 CHAMBER, AIR,P8,DC,ALUM

08-3651-03 CHAMBER, AIR, P8, SS

08-3651-05 CHAMBER, AIR,P8,DC,PFA

08-3651-73 CHAMBER, AIR,P8,HALAR

08-3653-02-60 CHAMBER, AIR, H800

08-3653-03-60 CHAMBER, AIR, H800, SS

08-3660-01 CHAMBER, AIR, PV8

08-3660-02 CHAMBER, AIR, PV8 (MACH)

08-3660-03 CHAMBER, AIR, PV8, SS

08-3660-05 CHAMBER, AIR, PV8, PFA COATED

08-3660-06 CHAMBER, AIR, PV8, NICKEL PLTD

08-3665-01 CHAMBER, AIR, T810/PV810

08-3681-01 CHAMBER, AIR,P8,BOLTED,SC

08-3681-01-465 CHAMBER, AIR, P800 (VERSA)

08-3681-03 CHAMBER, AIR, P800, SS

08-3681-05 CHAMBER, AIR,P8,BOLTED,SC,PFA

08-3681-20 CHAMBER, AIR, P800, ADV PLAST

08-3687-01 CHAMBER, AIR P820/830 ADV FIT METAL

08-3689-20 CHAMBER, AIR, PS800, ADV PLAST

08-3690-01 CHAMBER, AIR, PV800

08-3690-01-465 PV800, AIR CHAMBER, VERSA

08-3690-03 CHAMBER, AIR, PV800, SS

08-3690-20 CHAMBER, AIR, PV800, ADV PLAST

08-3694-01 CHAMBER, AIR, PX820/830, SS

08-3698-03 CHAMBER, AIR, PX820/830, SS

08-3700-01 PISTON, INNER, T8, (NON-PTFE)

08-3700-03 PISTON, INNER, (NON-PTFE)

08-3702-02 PISTON, INNER, H800

08-3702-03 PISTON, INNER, H800

08-3705-08 PISTON, INNER, 810

08-3720-01-60 PISTON, CYLINDER, H800

08-3730-03-60 BUSHING, CYLINDER PISTON

08-3750-01 PISTON, INNER, T8, (PTFE)

08-3752-03 PISTON, INNER, (PTFE)

08-3761-01 PISTON, INNER, P8 (UF)

08-3790-55-60 GUIDE RING

08-3800-03-07 SHAFT, STRAIGHT,T8, NON-PTFE

08-3800-03-60 SHAFT,HP,STRAIGHT,NON-PTFE,SS

08-3800-03-65 SHAFT, STALLION,STRA,T8,NON-P

08-3806-09 SHAFT, T810

08-3807-03 SHAFT, PV810 BRAHMA

08-3810-03 SHAFT, PRO-FLO RUBBER/TPE

08-3811-03 SHAFT, PRO-FLO ADV, RUBBER

08-3812-03 SHAFT, PRO-FLO, EZ INSTALL/FFT

08-3820-03-07 SHAFT, STRAIGHT, PTFE, SS, T8

08-3840-03 SHAFT, PRO-FLO,PTFE

08-3841-03 SHAFT, PRO-FLO, ULTRA-FLEX,SS

08-3842-03 SHAFT, PRO-FLO ADV, PTFE, SS

08-3843-03 SHAFT, PRO-FLO ADV, UF, SS

08-3848-03 SHAFT, PS8 STALLION, TPE

08-3854-03 SPOOL, AIR CONTROL, PS810

08-3860-08 SPACER, ULTRA-FLEX, T8, TURBO

08-3880-01 PLATE, CTR BLK ADPTR,T810/1510

08-3885-99 ASSY, PILOT SLV, PV810/PV1510

08-3894-99 ASSY, PILOT SLEEVE, PS810/1510

08-4550-01 PISTON, OUTER, (NON-PTFE)

08-4550-02 PISTON, OUTER, (NON-PTFE)

08-4550-03 PISTON, OUTER, (NON-PTFE)

08-4550-03P PISTON, OUTER (RUBBER) PASSIVA

08-4550-10-385P PISTON, OUTER (NON-PTFE) PASSI

08-4550-21-500 PISTON, OUTER, (NON-PTFE)

08-4555-08 PISTON, OUTER

08-4560-02 PISTON, OUTER, (ULTRA-FLEX)

08-4560-21 PISTON, OUTER, (ULTRA-FLEX)

08-4565-02 PISTON, OUTER, H800

08-4565-03 PISTON, OUTER, H800

08-4600-01 PISTON, OUTER, (PTFE)

08-4600-03 PISTON, OUTER, (PTFE)

08-4600-03P PISTON, OUTER (PTFE) PASSIVATE

08-4600-04 PISTON, OUTER, (PTFE)

08-4600-10-385P PISTON, OUTER (PTFE) PASSIVATE

08-4600-21-500 PISTON, OUTER, (PTFE)

08-4985-01 CHAMBER, LIQUID

08-4985-02 CHAMBER, LIQUID

08-5000-01 CHAMBER, LIQUID

08-5000-02 CHAMBER, LIQUID

08-5000-02-60 CHAMBER, LIQUID, H800

08-5000-03 CHAMBER, LIQUID

08-5000-03-40 CHAMBER, LIQUID, BOLTED

08-5000-03-60 CHAMBER, LIQUID

08-5000-04-40 CHAMBER, LIQUID, BOLTED

08-5000-10-385P CHAMBER, LIQUID, 2" EHEDG

08-5000-20 CHAMBER, LIQUID

08-5000-21 CHAMBER, LIQUID

08-5005-20 CHAMBER, LIQUID, ADV

08-5005-21 CHAMBER, LIQUID, ADV

08-5010-11 BALL RING

08-5015-01 CHAMBER, LIQUID, 820/830

08-5015-02 CHAMBER, LIQUID, 820/830

08-5015-03 CHAMBER, LIQUID, 820/830, SS

08-5020-01 MANIFOLD, DISCHARGE

08-5020-01-14 MANIFOLD, DISCHARGE, BSP

08-5020-02 MANIFOLD, DISCHARGE

08-5020-02-14 MANIFOLD, DISCHARGE, BSP

08-5020-02-62 MANIFOLD, DISCHARGE, H800, ANS

08-5020-02-63 MANIFOLD, DISCHARGE, H800, DIN

08-5020-03 MANIFOLD, DISCHARGE

08-5020-03-14 MANIFOLD, DISCHARGE, BSPT

08-5020-03-42 MANIFOLD, DISCH., BOLTED-ANSI

08-5020-03-62 MANIFOLD, DISCHARGE, ANSI

08-5020-03-70P MANIFOLD, DISCH., TRI-CLOVER

08-5020-04-43 MANIFOLD, DISCH., BOLTED-DIN

08-5030-20 MANIFOLD, DISCHARGE, ADV ANSI

08-5030-20-690 MANIFOLD, DISCH, ADV CNTR PORT

08-5030-21 MANIFOLD, DISCHARGE, ADV ANSI

08-5030-21-690 MANIFOLD, DISCH, ADV CNTR PORT

08-5031-20 MANIFOLD, DISCHARGE, ADV DIN

08-5031-21 MANIFOLD, DISCHARGE, ADV DIN

08-5035-01 MANIFOLD, DISCHARGE, 820, NPT

08-5035-02 MANIFOLD, DISCH, 820, NPT

08-5035-03 MANIFOLD, DISCHARGE, 820, NPT

08-5036-01 MANIFOLD, DISCH, 820, BSPT

08-5036-02 MANIFOLD, DISCH, 820, BSPT

08-5036-03 MANIFOLD, DISCH, 820, BSPT

08-5045-01 MANIFOLD, DISCH, 830, ANSI

08-5045-02 MANIFOLD, DISCH, 830, ANSI

08-5045-03 MANIFOLD, DISCH, 830, ANSI

08-5046-01 MANIFOLD, DISCH, 830, DIN

08-5046-02 MANIFOLD, DISCH, 830, DIN

08-5046-03 MANIFOLD, DISCH, 830, DIN

08-5080-01 MANIFOLD, INLET, FOOTED

08-5080-01-14 MANIFOLD, INLET, FOOTED-BSP

08-5080-01-30 MANIFOLD, INLET, SCREEN FITTED

08-5080-01-36 MANIFOLD, INLET, SCRN FTD-BSP

08-5080-02 MANIFOLD, INLET, FOOTED

08-5080-02-14 MANIFOLD, INLET, FOOTED-BSP

08-5080-02-62 MANIFOLD, INLET, H800, ANSI

08-5080-02-63 MANIFOLD, INLET, H800, DIN

08-5080-03 MANIFOLD, INLET, FOOTED

08-5080-03-14 MANIFOLD, INLET, FOOTED-BSP

08-5080-03-42 MANIFOLD, INLET, BOLTED-ANSI

08-5080-03-43 MANIFOLD, INLET, BOLTED-DIN

08-5080-03-62 MANIFOLD, INLET, BOLTED-ANSI

08-5080-03-70P MANIFOLD, INLET, TRI-CLOVER

08-5080-04-42 MANIFOLD, INLET, BOLTED-ANSI

08-5090-20 MANIFOLD, INLET, ADV ANSI

08-5090-20-690 MANIFOLD, INLET, ADV CNTR PORT

08-5090-21 MANIFOLD, INLET, ADV ANSI

08-5090-21-690 MANIFOLD, INLET, ADV CNTR PORT

08-5091-20 MANIFOLD, INLET, ADV DIN

08-5095-01 MANIFOLD, INLET, 820, NPT

08-5095-02 MANIFOLD, INLET, 820, NPT

08-5095-03 MANIFOLD, INLET, 820, NPT

08-5096-01 MANIFOLD, INLET, 820, BSPT

08-5096-02 MANIFOLD, INLET, 820, BSPT

08-5096-03 MANIFOLD, INLET, 820, BSPT

08-5125-01 MANIFOLD, INLET, 830, ANSI

08-5125-02 MANIFOLD, INLET, 830, ANSI

08-5125-03 MANIFOLD, INLET, 830, ANSI

08-5126-01 MANIFOLD, INLET, 830, DIN

08-5126-02 MANIFOLD, INLET, 830, DIN

08-5126-03 MANIFOLD, INLET, 830, DIN

08-5160-10-385P T-SECTION, 2" EHEDG

08-5160-20 T-SECTION, MACHINED (ANSI/DIN)

08-5175-01 T-SECTION, NPT

08-5175-01-14 T-SECTION, BSPT

08-5175-02 T-SECTION, NPT

08-5175-02-14 T-SECTION, BSPT

08-5215-01 ELBOW, INLET, 810

08-5215-02 ELBOW, INLET, 810

08-5220-20 ELBOW, INLET MANIFOLD

08-5230-20 ELBOW, DISCHARGE MANIFOLD

08-5240-10-385P ELBOW, 2" EHEDG

08-5255-01 ELBOW, DISCHARGE

08-5255-02 ELBOW, DISCHARGE

08-5280-10-83P BODY, 2" FLAP VALVE

08-5285-10-83P SPACER, FLAP VALVE

08-5350-10-385P BALL CAGE, 2" EHEDG

08-5350-20-500 CAGE, BALL

08-5350-21-500 CAGE, BALL

08-5431-10-385P HOUSING, MUSHROOM VALVE 2"

08-5545-08 FOOT, RIGHT MOUNTING

08-5546-08 FOOT, LEFT MOUNTING

08-5550-08 PLATE, BASE

08-5620-01 SCREEN, ALUMINUM

08-5620-62 SCREEN, STALLION, POLYURETHANE

08-5660-01 COVER, SUCTION HOOK UP

08-6000-03 SCREW, SHC, 5/16-18 X 2 1/4

08-6000-03-83 SCREW, SHC, 5/16-18 X 2 3/4

08-6000-08 SCREW, SHC, 5/16-18 X 2 1/4

08-6030-08-60 SCREW, SHC, 3/8-16 X 2 1/4

08-6050-03 BOLT, RHSN, 5/16-18 X 1 1/2

08-6050-03-500 BOLT, RHSN, 5/16-18 X 2

08-6050-05-500 BOLT, RHSN, 5/16-18 X 2

08-6050-08 BOLT, RHSN, 5/16-18 X 1 1/2

08-6050-08-50 BOLT, RHSN, 5/16-18 X 2

08-6070-03-500 BOLT, RHSN, 3/8-16 X 2 1/2

08-6070-05-500 BOLT, RHSN, 3/8-16 X 2 1/2

08-6092-08 SCREW, SFCHC, 5/8-11 X 1 1/2

08-6100-03 SCREW, HHC, 5/16-18 X 1 3/8

08-6120-03 SCREW, HHC, 3/8-16 X 3-1/4

08-6120-08 SCREW, HHC, 3/8-16 X 3

08-6130-03 SCREW, HHC, 3/8-16 X 1.00

08-6130-08 SCREW, HHC, 3/8-16 X 1.00

08-6132-08 SCREW, HHC, 1/2-13 X 1.00

08-6140-03 SCREW, HHC, 3/8-16 X 7/8

08-6140-08 SCREW, HHC, 3/8-16 X 7/8

08-6146-03 SCREW, HHC, 3/8-16 X 3

08-6150-08 STUD, 1/2-20 X 1 7/8

08-6150-08-60 STUD, 5/8-18 X 2

08-6152-08 STUD, 1/2-20 X 2 1/8

08-6153-03 ADAPTER, SHAFT STUD, 5/8 X 3/4

08-6161-08 STUD, 3/8-16 X 2.5

08-6162-08 STUD, 1/4-20 X 1.5

08-6180-03-42 SCREW, HHC, 5/16-18 X 1

08-6184-08 SCREW, HHC, 3/8-16 X 2.18

08-6185-08 SCREW, HFH, 3/8-16 X 1 1/4,GR8

08-6187-08 SCREW, HHC, 5/8-11 X 1

08-6190-08 SCREW, HHC, 1/2-13 X 1 3/4 GD5

08-6190-08-60 SCREW, HHC, 1/2-13 X 1 3/4

08-6191-05 SCREW, HHC, 1/2-13 X 4.25, PFA

08-6194-08 SCREW, HHC, 7/16-14 X 1.75

08-6195-08 SCREW, HHC, 7/16-14 X 1.18

08-6198-03 SCREW, HHC, 1/2-13 X 4-1/4

08-6200-03 SCREW, FHSC, 3/8-16 X 3 9/16

08-6200-08 SCREW, FHSC, 3/8-16 X 3 9/16

08-6220-03-60 SCREW, SFCHC, 1/2-13 X 1

08-6231-08 SCREW, SFCHC, 3/8-16 X 5.50

08-6260-08-60 SCREW, HHC, 7/16-14 X 1

08-6400-03 NUT, HEX, 5/16-18

08-6400-05 NUT, HEX, 5/16-18

08-6420-05 NUT, HEX, HVY, 3/8-16

08-6427-08 NUT, HEX, 7/16-14

08-6435-03 NUT, HEX FLANGE 1/2

08-6435-05 NUT, HEX FLANGE 1/2, PFA

08-6440-08 NUT, HEX, HVY, 5/16-18

08-6450-03 NUT, HEX, HVY, 3/8-16

08-6450-08 NUT, HEX, HVY, 3/8-16

08-6477-08 NUT, LOCK HEX, 1/4-20

08-6550-03 NUT, CONE, 3/8-16, T8 & T15

08-6550-08 NUT, CONE, 3/8-16, T8 & T15

08-6600-03-72 NUT, CAP, 5/16-18, PUMP STAND

08-6661-10 WING NUT, MEDIUM CLAMP

08-6671-10 WING NUT, LARGE CLAMP

08-6700-07-70 WASHER, FLAT(.340 X.750 X.062)

08-6720-07-70 WASHER, FLAT(.392 X.875 X.062)

08-6730-03-42 WASHER, FLAT(.328 X.562 X.063)

08-6734-08 WASHER, FLAT(.469 X.922 X.065)

08-6810-03-42 WASHER, DISC SPRNG(.317 X.625)

08-6820-03-42 WASHER, DISC SPRNG(.380 X.750)

08-6830-03-60 WASHER, FLAT(.453 X.750 X.063)

08-6840-03-60 WASHER, FLAT(.516 X.875 X.063)

08-6900-23-50 BUMPER, STALLION, T8

08-6901-23 BUMPER, STALLION, T4/T8, UF

08-6902-23 BUMPER, 810/1510

08-6902-52 BUMPER, 810/1510

08-6950-03 BUSHING, REDUCER, 3/4" TO 1/2"

08-7000-07 PIPE PLUG, OIL BOTTLE

08-7030-08-60 PIPE PLUG

08-7100-03 CLAMP BAND, SMALL, NESTED

08-7100-03-500 CLAMP BAND, SMALL, NESTED

08-7100-08 CLAMP BAND, SMALL, NESTED

08-7200-03-500 CLAMP BAND, MEDIUM, NESTED

08-7250-08 HANDLE, COLLAPSIBLE

08-7300-03 CLAMP BAND, LARGE, NESTED

08-7300-03-500 CLAMP BAND, LARGE, NESTED

08-7300-08 CLAMP BAND, LARGE, NESTED

08-7410-08 BRACKET, HANDLE

08-7420-03 PIPE NIPPLE, 3/4 CHK BODY T4/8

08-7420-08 PIPE NIPPLE, 3/4 CHK BODY T4/8

08-7430-08-60 PIPE NIPPLE, A.V. MANIFOLD

08-7510-03-60 PIPE, 3/8 SCHED 40 X 3.625

08-7520-03-60 PIPE, 3/8 SCHED 40 X 2.375

08-7655-03 STAND ASSY, SWIVEL, PV8 HS

08-7670-20 PAD, PUMP STAND

08-7672-20 PAD, PUMP STAND, SWIVEL, 2"

08-9030-12 BOX, 17-1/2 X 14-5/8 X 30-1/4

08-9030-12-500 BOX

08-9034-12 SLEEVE, 37X24X31-3/4

08-9042-12 BOX, 2" ADV PLASTIC

08-9075-12 BOX, SLEEVE, 22 X 25 PX, HS

08-9131-12 INSERT, COMBO, PLASTIC BLTD

15-1010-50 DIAPHRAGM, PRIMARY, POLYURETHA

15-1010-51 DIAPHRAGM, PRIMARY, NEOPRENE

15-1010-52 DIAPHRAGM, PRIMARY, BUNA

15-1010-53 DIAPHRAGM, PRIMARY, VITON

15-1010-54 DIAPHRAGM, PRIMARY, NORDEL

15-1010-55 DIAPHRAGM, PRIMARY, PTFE

15-1010-55-42 DIAPHRAGM, PRIMARY, BOLTED

15-1010-55E DIAPHRAGM, PRIMARY, PTFE PKG 2

15-1010-56 DIAPHRAGM, PRIMARY, SANIFLEX

15-1010-56E DIAPHRAGM, PRIMARY, FSS PKG 2

15-1010-58 DIAPHRAGM, PRIMARY, WILFLEX

15-1012-51 DIAPHRAGM, FLAP VALVE, NE

15-1012-52 DIAPHRAGM, FLAP VALVE, BN

15-1020-51 DIAPHRAGM, PRIMARY, UF, NEO

15-1020-52 DIAPHRAGM, PRIMARY, UF, BUNA

15-1020-53 DIAPHRAGM, PRIMARY, UF, VITON

15-1020-54 DIAPHRAGM, PRIMARY, UF, NORDEL

15-1022-15 DIAPHRAGM, PRIMARY, EZ GEOLAST

15-1022-50 DIAPHRAGM, PRIMARY, EZ POLY

15-1022-56 DIAPHRAGM, PRIMARY EZ SANIFLEX

15-1022-56E DIAPHRAGM, PRIMARY ZSS PKG 2

15-1022-57 DIAPHRAGM, PRIMARY, EZ, FG WF

15-1022-58 DIAPHRAGM, PRIMARY, EZ WILFLEX

15-1031-56 DIAPHRAGM, PRIMARY, SIPD

15-1031-56E DIAPHRAGM, PRIMARY, FSL PKG 2

15-1031-57 DIAPHRAGM, PRIMARY, FSIPD

15-1031-58 DIAPHRAGM, PRIMARY, FSIPD

15-1040-55 DIAPHRAGM, PRIMARY, FULL FLOW

15-1040-55-42 DIAPHRAGM, PRI, FULL FLOW BOLT

15-1040-55-42E DIAPHRAGM, PRI, FULL FLOW BOLT

15-1040-55E DIAPHRAGM, PRIMARY, FFLO PKG 2

15-1060-51 DIAPHRAGM, BACK-UP, NEOPRENE

15-1060-54 DIAPHRAGM, BACK-UP, NORDEL

15-1060-56 DIAPHRAGM, BACK-UP, SANIFLEX

15-1060-56E DIAPHRAGM, BACK-UP, TSU, PKG 2

15-1065-56 DIAPHRAGM, BU, FSS, FULL FLOW

15-1065-56E DIAPHRAGM, BU, FSS, FFLO PKG 2

15-1065-57 DIAPHRAGM, BU, FWS, FULL FLOW

15-1080-50 BALL, VALVE, POLYURETHANE

15-1080-51 BALL, VALVE, NEOPRENE

15-1080-52 BALL, VALVE, BUNA

15-1080-53 BALL, VALVE, VITON

15-1080-54 BALL, VALVE, NORDEL

15-1080-55 BALL, VALVE, TEFLON

15-1080-55E BALL, VALVE, TF PKG 4

15-1080-56 BALL, VALVE, SANIFLEX

15-1080-56E BALL, VALVE, FS PKG 4

15-1080-57 BALL, VALVE, FDA WIL-FLEX

15-1080-58 BALL, VALVE, WILFLEX

15-1085-51 BALL, VALVE, 1500, 4-IN, NEO

15-1085-52 BALL, VALVE, 1500, 4-IN, BUNA

15-1085-53 BALL, VALVE, 1500, 4-IN, VTS

15-1085-54 BALL, VALVE, 1500, 4-IN, EPDM

15-1085-55 BALL, VALVE, TEFLON, 3" PLASTC

15-1085-56 BALL, VALVE, 1500, 4-IN,SANIFL

15-1085-57 BALL, VALVE, 1500, 4-IN, FG WF

15-1085-58 BALL, VALVE, 1500, 4-IN,WILFEX

15-1086-55 BALL, VALVE, PTFE, 3" EHEDG

15-1086-55E BALL, VALVE, TF, EHEDG PKG 4

15-1086-56 BALL, VALVE, SANIFLEX,3" EHEDG

15-1086-56E BALL, VALVE, FS,3" EHEDG PKG 4

15-1086-57 BALL, VALVE, FDA WIL-FLEX, 3"

15-1086-74 BALL, VALVE, FDA EPDM, 3" EHED

15-1086-74E BALL, VALVE, FE 3" EHEDG PKG 4

15-1096-55 MUSHROOM VALVE, SANIFLO HS

15-1120-21 SEAT, VALVE, KYNAR, CHAMP

15-1120-50 SEAT, VALVE, POLYURETHANE

15-1120-51 SEAT, VALVE, NEOPRENE

15-1120-51-50 SEAT, VALVE, NEOPRENE,STALLION

15-1120-52 SEAT, VALVE, BUNA

15-1120-52-50 SEAT, VALVE, BUNA,STALLION

15-1120-53 SEAT, VALVE, VITON

15-1120-53-50 SEAT, VALVE, VITON,STALLION

15-1120-54 SEAT, VALVE, NORDEL

15-1120-54-50 SEAT, VALVE, NORDEL,STALLION

15-1120-56 SEAT, VALVE, SANIFLEX

15-1120-56E SEAT, VALVE, FS PKG 4

15-1120-57 SEAT, VALVE, FDA WILFLEX

15-1120-58 SEAT, VALVE, WILFLEX

15-1121-01 SEAT, VALVE, REVERS, ALUMINUM

15-1121-03 SEAT, VALVE, REVERS, STAINLESS

15-1121-03P SEAT, VALVE, REVERS, SS PASSIV

15-1121-08 SEAT, VALVE, REVERS, MILD STEE

15-1125-03 SEAT, VALVE, SS

15-1126-50 SEAT / GASKET, COMBO,POLYURETH

15-1126-51 SEAT / GASKET, COMBO,NEOPRENE

15-1126-52 SEAT / GASKET, COMBO,BUNA

15-1126-54 SEAT / GASKET, COMBO,NORDEL

15-1126-56 SEAT / GASKET, COMBO,SANIFLEX

15-1126-58 SEAT / GASKET, COMBO,WILFLEX

15-1128-51 SEAT, VALVE, 1500 SS DROPIN NE

15-1128-52 SEAT, VALVE, 1500 SS DROPIN BN

15-1128-53 SEAT, VALVE, 1500 SS DROPIN VT

15-1128-54 SEAT, VALVE, 1500 SS DROPIN EP

15-1128-56 SEAT, VALVE, 1500 SS DROPIN FS

15-1128-58 SEAT, VALVE, 1500 SS DROPIN WF

15-1129-03 SEAT, VALVE, 1500, SS, DROP IN

15-1129-08 SEAT, VALVE, 1520/1530, FIT

15-1150-01 SEAT, FLAP VALVE

15-1150-02 SEAT, FLAP VALVE

15-1180-10-83P FLAP, VALVE, LSH

15-1185-51 ASSEMBLY, FLAP VALVE

15-1185-52 ASSEMBLY, FLAP VALVE

15-1195-51 PAD, FLAP VALVE HINGE

15-1195-52 PAD, FLAP VALVE HINGE

15-1196-08 RETAINER, FLAP VALVE

15-1200-55 O-RING, (3.600 X.210)TEFLON

15-1200-55E O-RING, (3.600X.210) TF PKG 4

15-1205-55 O-RING (4.984 X .139) PTFE

15-1209-55 O-RING, (5.600 X .210), PTFE

15-1215-55 GASKET, MANIFOLD, 4"

15-1215-55E GASKET, MANIFOLD, 4" PKG 2

15-1215-68 GASKET, LARGE MANIFOLD, 4"

15-1215-68E GASKET, LG MANIFOLD, 4" PKG 2

15-1215-69 GASKET, MANIFOLD, 4"

15-1215-69E GASKET, MANIFOLD, 4" PKG 2

15-1215-74 GASKET, MANIFOLD, 4"

15-1215-74E GASKET, MANIFOLD, 4" PKG 2

15-1300-60 O-RING, (4.225 X.210)TFE/VT,CH

15-1305-51 RING, MANIFOLD SEALING

15-1305-52 RING, MANIFOLD SEALING

15-1325-51 GASKET, T-SECTION,NEOPRENE

15-1325-52 GASKET, T-SECTION,BUNA

15-1325-54 GASKET, T-SECTION,NORDEL

15-1325-55 GASKET, T-SECTION,PTFE

15-1325-57 GASKET,T-SECTION, 3" ADV METAL

15-1325-58 GASKET, T-SECTION,WILFLEX

15-1370-60 O-RING, (6.475 X.210)TFE/VT,CH

15-1375-55 GASKET, MANIFOLD, 3"

15-1375-55E GASKET, MANIFOLD, 3" PKG 4

15-1375-68 GASKET, SMALL MANIFOLD, 3"

15-1375-68E GASKET, SM MANIFOLD, 3" PKG 4

15-1375-69 GASKET, MANIFOLD, 3"

15-1375-69E GASKET, MANIFOLD, 3" PKG 4

15-1375-74 GASKET, MANIFOLD, 3"

15-1375-74E GASKET, MANIFOLD, 3" PKG 4

15-1395-51 GASKET, SEAT

15-1395-52 GASKET, SEAT

15-1401-51 GASKET, MANIFOLD

15-1401-52 GASKET, MANIFOLD

15-1405-55 GASKET, MANIFOLD ELBOW,PTFE

15-1450-51 BALL, CHECK, NEOPRENE

15-2000-07 AIR VALVE ASSEMBLY, T15

15-2010-20 ASSY, AIR VALVE, P15

15-2050-07 AIR VALVE BODY, OIL BOTTLE,T15

15-2080-07 ASSY, AIR VALVE W-OIL BOTTLE

15-2300-23 END CAP W/GUIDE, T15, TURBO

15-2330-23 ENDCAP W/O GUIDE PIN, T15

15-2332-20 END CAP, P15

15-2390-52 O-RING, (1.359 X.139)BUNA

15-2600-52 GASKET, AIR VALVE, T15, TURBO

15-2615-52 GASKET, AIR VALVE, P15

15-2650-03 RETAINING RING, AIR VALVE

15-2650-49 O-RING, (.362 X.103)POLYURETHA

15-2651-03 RETAINING RING,REMOVBLE SLEEVE

15-2850-01 OIL BOTTLE ASSEMBLY, T15

15-2900-99 CAPILLARY ROD ASSEMBLY, T15

15-3100-01-225 CENTER BLOCK, T15, ALUM

15-3100-20-225 CENTER BLOCK, T15, POLY

15-3110-20 CENTER BLOCK ASSY, P1500 PLAS

15-3126-01 CENTER BLOCK ASSY, PX15

15-3126-06 CENTER BLOCK ASSY, PX15 NP

15-3126-20 CENTER BLOCK, POLY PX15

15-3129-01 CENTER BLOCK ASSY, PS15

15-3129-03 CENTER BLOCK, ASSY, PS15

15-3129-20 CENTER BLOCK, ASSY, PS15

15-3181-20 MUFFLER PLATE, P15

15-3200-52 O-RING, (.984 X.139)BUNA

15-3210-55-225 GLYD-RING, (.995 X.132) II, 15

15-3250-08 CONNECTOR, MUFFLER (1 X 45DEG)

15-3252-08 CONNECTOR, MUFFLER, 1" X 90DEG

15-3306-13 BUSHING, SHAFT PX15, ACETAL

15-3505-52 GASKET, P15 MUFFLER PLATE

15-3510-06R MUFFLER, 1", NICKEL PLATED

15-3510-99R MUFFLER, METAL, 1"

15-3514-99 MUFFLER, 1", PLAST W BRASS INS

15-3520-52 GASKET, CENTER BLK, T15, TURBO

15-3525-52 GASKET, P15 CENTER BLOCK

15-3528-52 GASKET, CENTER BLOCK,T810/1510

15-3550-01 CHECK BODY

15-3650-01 CHAMBER, AIR, T15, ALUM

15-3650-02 CHAMBER, MACHINED AIR, T15, CI

15-3660-01 CHAMBER, AIR, PV15

15-3660-02 CHAMBER, AIR PV15 (MACH)

15-3660-03 CHAMBER, AIR, PV15, SS

15-3660-06 CHAMBER, AIR, PV15 NICKEL PLTD

15-3667-01 CHAMBER, AIR, PX1510, BRAHMA

15-3681-20 CHAMBER, AIR, P1500, PLAST

15-3689-20 CHAMBER, AIR, PS1500, ADV PLAS

15-3690-03 CHAMBER, AIR, PV1500, SS

15-3691-01 CHAMBER, AIR, 1500 PV

15-3691-05 CHAMBER, AIR, 1500 PV

15-3700-01 PISTON, INNER, (NON-PTFE)

15-3700-03 PISTON, INNER, (NON PTFE)

15-3705-01 PISTON, INNER, 1510

15-3705-02 PISTON, INNER, 1510

15-3750-01 PISTON, INNER, (PTFE), T15

15-3752-03 PISTON, INNER, (PTFE)

15-3760-08 PISTON, INNER,(ULTRA-FLEX),T15

15-3800-03-07 SHAFT, STRAIGHT, COMBO, T15

15-3800-03-65 SHAFT, STALLION, STRA, T15

15-3805-03 SHAFT, SOL,COMBO

15-3806-09 SHAFT, T1510

15-3807-03 SHAFT, PV1510 BRAHMA

15-3814-03 SHAFT, FSIPD PX/PS15 METAL

15-3842-03 SHAFT, P1500 PLASTIC, SS

15-3844-03 SHAFT, FSIPD P1500 ADV PLASTIC

15-3848-03 SHAFT, PS15 STALLION, TPE

15-3854-03 SPOOL, AIR CONTROL, PS1510

15-3858-03 SPOOL, AIR CONTROL, PS1500 PL

15-3859-03 SPOOL, AIR CONTROL, PS15

15-3859-13 SPOOL, AIR CONTROL, PS15

15-3875-50 O-RING, (.299 X.103)POLYURETHA

15-3880-99 ASSY, PILOT SLEEVE, P15

15-3882-99 ASSY, PILOT SLEEVE,P1500 PLAST

15-3884-99 ASSY, PILOT SLEEVE, PV15

15-3887-99 ASSY, PILOT SLEEVE, PV15

15-3889-99 ASSY, PILOT SLEEVE PS1500 PLAS

15-4550-01 PISTON, OUTER, (NON-PTFE)

15-4550-02 PISTON, OUTER, (NON-PTFE)

15-4550-03 PISTON, OUTER, (NON-PTFE)

15-4550-03P PISTON, OUTER, (RUBBER) PASSIV

15-4550-04 PISTON, OUTER, (NON-PTFE)

15-4555-01 PISTON, OUTER

15-4555-02 PISTON, OUTER

15-4560-01 PISTON, OUTER, (ULTRA-FLEX) MA

15-4560-02 PISTON, OUTER, (ULTRA-FLEX)

15-4560-03 PISTON, OUTER, (ULTRA-FLEX)

15-4600-03 PISTON, OUTER, (PTFE)

15-4600-03P PISTON, OUTER (PTFE) PASSIVATE

15-4600-04 PISTON, OUTER, (PTFE)

15-4600-21 PISTON, OUTER, (PTFE)

15-4980-01 CHAMBER, LIQUID, BOLTED

15-4985-01 CHAMBER, LIQUID

15-5000-01 CHAMBER, LIQUID

15-5000-02 CHAMBER, LIQUID

15-5000-03 CHAMBER, LIQUID

15-5000-03P CHAMBER, LIQUID, PASSIVATED

15-5000-10-385P CHAMBER, LIQUID, 3" EHEDG

15-5000-20 CHAMBER, LIQUID, 3" PLASTC

15-5000-21 CHAMBER, LIQUID, BOLTED

15-5005-03 CHAMBER, LIQUID, BOLTED

15-5006-02 CHAMBER, LIQUID 1520/1530

15-5006-03 CHAMBER, LIQUID 1520/1530

15-5020-01 MANIFOLD, DISCHARGE

15-5020-01-14 MANIFOLD, DISCHARGE, BSP

15-5020-02 MANIFOLD, DISCHARGE

15-5020-02-14 MANIFOLD, DISCHARGE, BSP

15-5020-03 MANIFOLD, DISCHARGE

15-5020-03-14 MANIFOLD, DISCHARGE, BSP

15-5020-03-70P MANIFOLD, DISCH., TRI-CLOVER

15-5030-03 MANIFOLD, DISCH, BLTD (ANSI)

15-5035-01 MANIFOLD, DISCHARGE, 1520, NPT

15-5035-02 MANIFOLD, DISCHARGE, 1520 NPT

15-5035-03 MANIFOLD, DISCHARGE, 1520, NPT

15-5036-01 MANIFOLD, DISCHARGE, 1520 BSPT

15-5036-02 MANIFOLD, DISCHARGE, 1520 BSPT

15-5036-03 MANIFOLD, DISCHARGE, 1520 BSPT

15-5045-02 MANIFOLD, DISCHARGE, 1530 ANSI

15-5045-03 MANIFOLD, DISCHARGE, 1530 ANSI

15-5046-02 MANIFOLD, DISCHARGE, 1530 DIN

15-5046-03 MANIFOLD, DISCHARGE, 1530, DIN

15-5080-01 MANIFOLD, INLET, FOOTED

15-5080-01-14 MANIFOLD, INLET, FOOTED-BSP

15-5080-01-30 MANIFOLD, INLET, SCREEN FITTED

15-5080-01-36 MANIFOLD,INLET,SCREEN FTD-BSP

15-5080-02 MANIFOLD, INLET, FOOTED

15-5080-02-14 MANIFOLD, INLET, FOOTED-BSP

15-5080-03 MANIFOLD, INLET, FOOTED

15-5080-03-14 MANIFOLD, INLET, FOOTED-BSP

15-5080-03-70P MANIFOLD, INLET, TRI-CLOVER

15-5090-03 MANIFOLD, INLET, BLTD (ANSI)

15-5095-01 MANIFOLD, INLET, 1520, NPT

15-5095-02 MANIFOLD, INLET, 1520, NPT

15-5095-03 MANIFOLD, INLET, 1520, NPT

15-5096-01 MANIFOLD, INLET, 1520, BSPT

15-5096-02 MANIFOLD, INLET, 1520 BSPT

15-5096-03 MANIFOLD, INLET, 1520, BSPT

15-5125-02 MANIFOLD, INLET, 1530, ANSI

15-5125-03 MANIFOLD, INLET, 1530, ANSI

15-5126-02 MANIFOLD, INLET, 1530, DIN

15-5126-03 MANIFOLD, INLET, 1530, DIN

15-5160-10-385P T-SECTION, 3" EHEDG

15-5175-01 T-SECTION, ANSI

15-5180-01 T-SECTION, BOLTED, (ANSI)

15-5180-20 T-SECTION, BOLTED (ANSI)

15-5180-21 T-SECTION, BOLTED (ANSI)

15-5185-01 T-SECTION, BOLTED, (DIN)

15-5185-20 T-SECTION, BOLTED, (DIN)

15-5210-01 ELBOW, INLET, BOLTED

15-5215-01 ELBOW, INLET, 1510

15-5240-10-385P ELBOW, 3" EHEDG

15-5240-20 ELBOW, COMBO MANIFOLD

15-5240-21 ELBOW, COMBO, MANIFOLD

15-5250-01 ELBOW, DISCHARGE, BOLTED

15-5255-01 ELBOW, DISCHARGE

15-5350-10-385P BALL CAGE, 3" EHEDG

15-5350-20 CAGE, BALL

15-5350-21 CAGE, BALL

15-5431-10-385P HOUSING, MUSHROOM VALVE 3"

15-5545-08 FOOT, RIGHT MOUNTING

15-5546-08 FOOT, LEFT MOUNTING

15-5620-01 SCREEN, ALUMINUM

15-5620-62 SCREEN, STALLION, POLYURETHANE

15-5660-01 COVER, SUCTION HOOK UP

15-6001-03 SCREW, SHC, 7/16-14 X 5 7/8

15-6050-03 BOLT, RHSN, 3/8-16 X 2

15-6050-08 BOLT, RHSN, 3/8-16 X 2 1/4

15-6120-03 SCREW, HHC, 1/2-13 X 3 3/4

15-6120-08 SCREW, HHC, 1/2-13 X 3 3/4

15-6130-08 SCREW, HHC, 3/8-16 X 1 1/8

15-6133-03 SCREW, HHC, 3/8-16 X 2

15-6143-03 SCREW, HHC, 1/2-13 X 6

15-6161-08 STUD, 7/16-14 X 2.38

15-6162-08 STUD, 7/16-14 X 3.19

15-6180-03 SCREW, HHC, 5/8-11 X 2

15-6180-08 SCREW, HHC, 5/8-11 X 2

15-6181-03 BOLT, HHCS, 5/8-11 X 3 1/4

15-6182-03 SCREW, HHC, 1/2-13 X 1 3/4"

15-6184-08 SCREW, HHC, 1/2-13 X 2.38

15-6192-03 SCREW, HHC, 3/4-10 X 8.38

15-6193-08 SCREW, HHC, 5/8-11 X 1 1/4

15-6194-08 SCREW, BSHC, 1/2-13 X 1.38

15-6200-03 SCREW, SFCHC, 3/8-16 X 4

15-6200-08 SCREW, SFCHC, 3/8-16 X 4

15-6202-03 SCREW, HHC, 1/2-13 X 3.25

15-6360-08 SCREW, LAG, 3/8-7 X 3"

15-6420-03 NUT, HEX, 1/2-13

15-6420-08 NUT, HEX, 1/2-13

15-6425-03 NUT, HEX, 3/4-10 UNC-2B

15-6430-03 NUT, HEX, 5/8-11 UNC-2B

15-6461-08 NUT, LOCK HEX, 3/4-10

15-6506-03 NUT, SQUARE, 7/16

15-6671-10 WING NUT, LARGE CLAMP

15-6720-07-70 WASHER, FLAT(.516 X.875 X.063)

15-6720-08 WASHER, FLAT(.390 X.625 X.063)

15-6730-03 WASHER, FLAT(.66 X1.312 X.187)

15-6732-08 WASHER, FLAT(.656 X1.312 X.095

15-6735-03 WASHER, FLAT(.812 X1.75 X.095)

15-6740-08-50 WASHER, FLAT(.406 X.812 X.065)

15-6741-07 WASHER, FLAT(.630 X1.00 X.050)

15-6742-07 WASHER, FLAT(.790 X980 X.040)

15-6743-08 WASHER, FLAT(.810 X1.50 X.130)

15-6810-03 WASHER, DISC SPRNG(.505 X1.00)

15-6820-03 WASHER, DISC SPRNG(.630 X1.25)

15-6850-08 WASHER, SHLDR(.753 X2.00 X187)

15-6900-23-50 BUMPER, STALLION, T15

15-6950-20 BUSHING, REDUCER, 1" TO 3/4"

15-7100-03 CLAMP BAND, SMALL, NESTED

15-7100-08 CLAMP BAND, SMALL, NESTED

15-7102-03 ASSY, CLAMP BAND, 3"

15-7202-03 ASSY, CLAMP BAND, LSH, 4"

15-7250-08 HANDLE, COLLAPSIBLE

15-7300-03 CLAMP BAND, LARGE, NESTED

15-7300-08 CLAMP BAND, LARGE, NESTED

15-7410-08 BRACKET, HANDLE

15-7420-08 PIPE NIPPLE, CHECK BODY

15-7650-03 PUMP STAND, 3" PLASTIC

15-7654-03 STAND ASSY, PX/PS15 SANIFLO HS

15-7667-03 BUSHING, MOUNTING SWIVEL STAND

15-7710-08 SLEEVE, THREADED, P1500 PLAST

15-9044-12 BOX, GENERIC LSH/15 ALUM ADV

15-9100-12 INSERT, BOTTOM

15-9130-12 INSERT, SCREEN

20-1080-50 BALL, VALVE, POLYURETHANE

20-1080-55 BALL, VALVE, TEFLON

20-1120-50 SEAT, VALVE, POLYURETHANE

20-1120-53 SEAT, VALVE, VITON

20-1250-53 O-RING, (7.475 X.210)VITON

20-1400-53 GASKET, MANIFOLD ELBOW

20-1400-54 GASKET, MANIFOLD ELBOW

20-3800-03-07 SHAFT, STR, NON-PTFE, T20

20-3810-03 SHAFT, PV20

20-3830-03-07 SHAFT, STR, ULTRA-FLEX, T20

20-3841-03 SHAFT, ULTRA-FLEX, SS, PV20

20-4550-02 PISTON, OUTER, (NON-PTFE)

20-4560-02 PISTON, OUTER, (ULTRA-FLEX)

20-5000-02 CHAMBER, LIQUID

20-5160-02 T-SECTION, (ANSI)

20-5220-02 ELBOW

20-5460-02 POT, BALL

20-5480-02 PLATE, BALL POT

20-5540-02 FOOT, INLET MANIFOLD

20-6150-08 STUD, 3/4-16 X 1 7/8

20-6160-08 STUD, 3/4-10 X 4

20-6300-08 U-BOLT, MANIFOLD FOOT

20-6361-08 SCREW, HHC, 1/2-13 X 4-1/2"

20-6690-02 WING NUT, 3/4-10 UNC

20-6750-08 WASHER, LOCK(.531 X.873 X.125)

20-7010-07 PIPE PLUG, ELBOW

20-7100-03 CLAMP BAND, SMALL

20-7200-03 CLAMP BAND, MEDIUM

38-1371-58 O-RING, MANIFOLD (.984 X .139) TPE

38-1371-60 O-RING, MANIFOLD (.984 X .139) TFE/VITON

50-1480-52 GASKET, DRUM PUMP ADAPTER

50-6350-03 SCREW, SELF TAPPING, 8-18 X 1

50-6760-03 WASHER, LOCK(.271 X.489 X.062)

50-9310-20 TUBE, DRUM PUMP, 1/2 X 34 9/16

50-9310-55 TUBE, DRUM PUMP, 1/2 X 36.562

50-9330-20 BASE, DRUM PUMP

50-9350-55 NIPPLE, DRUM PUMP

50-9360-20 NIPPLE ADAPTER, DRUM PUMP

50-9360-55 NIPPLE ADAPTER, DRUM PUMP

65-8015-99 CONTROL MODULE,WIL-GARD III

65-8020-99 SENSOR CABLES, WIL-GARD II

65-8080-99 100' EXTEN. W/IN LINE REC&PLUG

70-1270-52 O-RING, (3.234 X.139)BUNA

70-1270-60 O-RING, (3.234 X.139)TFE/VITON

70-1280-52 O-RING, (2.359 X.139)BUNA

70-1280-55 O-RING, (2.359 X.139)TEFLON

70-3750-01 PISTON, INNER, (PTFE)

70-6250-03 SCREW, SHC, 1/4-20 X 7/8

70-6790-08 WASHER STOP,ASD(.53 X1.38X.17)

70-6950-08 BUSHING, REDUCER 1-1/4 TO 1/2

70-8500-20 AIR REGULATOR, ASD

70-8600-01 SURGE END, W/GLAND, COMBO

70-8600-01-14 SURGE END, W/GLAND, COMBO

70-8600-03 SURGE END, W/GLAND, COMBO

70-8600-03-14 SURGE END, W/GLAND, COMBO

70-8600-20 SURGE END, W/GLAND, COMBO

70-8600-20-14 SURGE END, W/GLAND, COMBO

70-8600-21 SURGE END, W/GLAND, COMBO

70-8800-17 STOP, ASD

70-9030-12 CARDBOARD BOX FOR ASD1

70-9150-12 INSERT, COMBO

71-1270-52 O-RING, (4.359 X.139)BUNA

71-1270-60 O-RING, (4.359 X.139)TFE/VITON

71-1280-52 O-RING, (3.109 X.139) P15ENDCP

71-1281-52 O-RING, (3.10 X.210) BUNA, SD2

71-1281-55 O-RING, (3.10 X.210) PTFE, SD2

71-3520-56 GASKET, CENTERBLOCK, SD2

71-3650-01 CHAMBER, AIR,SD2,ALUM

71-3650-03 CHAMBER, AIR,SD2,SS

71-3650-05 CHAMBER, AIR,SD2,PFA

71-6153-08 ADAPTER, SHAFT STUD, LSH DAMP

71-6250-03 SCREW, SFCHC, 3/8-16 X 1

71-6250-08 SCREW, SFCHC, 3/8-16 X 1

71-6950-03 BUSHING, REDUCER 1-1/4 TO 1/2

71-8601-01 SURGE END, W/GLAND, COMBO

71-8601-01-14 SURGE END, W/GLAND, COMBO

71-8601-03 SURGE END, W/GLAND, COMBO

71-8601-03-14 SURGE END, W/GLAND, COMBO

71-8700-20 SURGE END, W/GLAND, INLET

71-8700-20-14 SURGE END, W/GLAND, INLET

71-8710-20 SURGE END, W/GLAND, DISCHARGE

71-8710-20-14 SURGE END, W/GLAND, DISCHARGE

71-8800-17 STOP, ASD

71-9030-12 BOX

71-9150-12 INSERT, COMBO

72-5000-03-14 CHAMBER, LIQUID

72-5000-20 CHAMBER, LIQUID

72-5000-20-14 CHAMBER, LIQUID

72-6950-07 BUSHING, REDUCER, 1/5" TO 1/8"

72-8500-20 AIR REGULATOR, ASD 1/2

76-1285-52 O-RING, (2.484 X .139) BUNA

76-3800-03 SHAFT, STRAIGHT, SS

76-5000-10-385P CHAMBER, LIQ, 1.5" HS DAMPENER

76-6250-03 SCREW, SHC, 1/4-20 X 3/4

76-8510-01 PLATE, REGULATOR, ADAPTER, AL

76-8510-06 PLATE, REGULATOR, ADAPTER, NP

76-8515-01 BODY, REGULATOR, AL

76-8515-03 BODY, REGULATOR, SS

76-8515-06 BODY, REGULATOR, NICKEL PLATED

76-8800-17 STOP, SHAFT, SD

77-3800-03 SHAFT, STRAIGHT, SD

78-3800-03 SHAFT, STRAIGHT, SD

78-6450-08 NUT, HEX, 3/4"

78-8600-01 END, 3" NPT SURGE, AL

78-8600-01-14 END, 3" BSPT SURGE, AL

78-8800-17 STOP, SHAFT, SD

99-3240-07 MUFFLER EXHAUST, BRONZE, 1/2"

99-6034-08 SCREW, SHC, 3/8-16 X 1.5 BLK

99-6340-08 SET SCREW, SHCP, 1/4-20

99-8150-99 PUMP CYCLE MONITOR I COUNTER

99-8310-99 AIR SYSTEM 3ML GREASE PKT

99-8321-99 MAGNET PUMP CYCLE MONITOR

99-8330-99 SENSOR W/ 20" LEADS

99-8985-20 DIAPHRAGM, INSTALLATION TOOL

02-1031-46 DIAPHRAGM, PRIMARY, FSIPD

04-1031-46 DIAPHRAGM, PRIMARY, FSIPD

08-1031-46 DIAPHRAGM, PRIMARY, FSIPD

73-1069-52 DIAPHRAGM, BU, BUNA, ASSY, DAMPENER, 1" AOD

74-1069-52 DIAPHRAGM, BU, BUNA, ASSY, DAMPENER, 1.5 - 2" AOD

79-1069-52 DIAPHRAGM, BU, BUNA, ASSY, DAMPENER, 3" AOD

73-1045-55 DIAPHRAGM, PTFE, DAMPENER, 1" AOD

74-1045-55 DIAPHRAGM, PTFE, DAMPENER, 1.5 - 2" AOD

79-1045-55 DIAPHRAGM, PTFE, DAMPENER, 3" AOD

15-1031-46 DIAPHRAGM, PRIMARY, FSIPD

Quer reduzir seu custo de Operação e Manutenção com bombas pneumáticas de duplo diafragma?

Mantenha suas bombas operando por mais tempo pelo melhor preço do mercado com a AODD.

Solicite um orçamento
peças-de-reparo-bombas-pneumáticas-de-duplo-diafragma-vista-explodida
peças-de-reparo-bombas-pneumáticas-de-duplo-diafragma-vista-explodida

Com as peças de reparo da AODD, nossos clientes mantém suas bombas pneumáticas funcionando por mais tempo pelo menor preço.

Desenvolvidas e projetadas para máxima confiabilidade.

ARO ® é uma marca registrada da Ingersoll Rand Company | WILDEN ® é uma marca registrada do PSG (DOVER) | SANDPIPER ® é uma marca registrada da Warren Rupp Company (IDEX Corp) | VERSAMATIC ® é uma marca registrada da Warren Rupp Company (IDEX Corp).

A AODD Bombas não é afiliada a nenhuma dessas empresas listadas. Os produtos AODD não são autorizados ou fabricados por essas empresas. A AODD Bombas oferece bombas e peças equivalentes e de alta qualidade, porém não originais.

As peças de reparo da AODD para bombas pneumáticas de duplo diafragma, reconhecidas pela sua qualidade e confiabilidade, são a escolha ideal para empresas que buscam uma operação segura e com baixo índice de falhas.

Fabricadas com matéria prima de altíssima qualidade e utilizando processos produtivos de ponta, as peças de reparo da AODD garantem um desempenho excepcional e uma vida útil prolongada para as suas bombas pneumáticas.

Pensando na facilidade e comodidade, nossa linha conta com um portfólio completo de peças de reparo totalmente compatíveis e intercambiáveis com as peças de outras marcas e fabricantes de bombas pneumáticas disponíveis no mercado (como Wilden ®, Aro ®, Versamatic ® e Sandpiper ®). Isso significa que os clientes  podem ter a tranquilidade de que as peças de reparo da AODD se encaixarão perfeitamente em suas bombas existentes, sem comprometer o desempenho ou a eficiência.

catálogo de bombas pneumáticas de duplo diafragma e peças de reparo AODD Bombas
catálogo de bombas pneumáticas de duplo diafragma e peças de reparo AODD Bombas

Acesse nosso catálogo para saber mais sobre nossos produtos.

©2024 AODD Bombas – International Pump Alliance LTDA

Telefone | WhatsApp: (11) 5242-5495

Política de privacidade

Termos e condições
